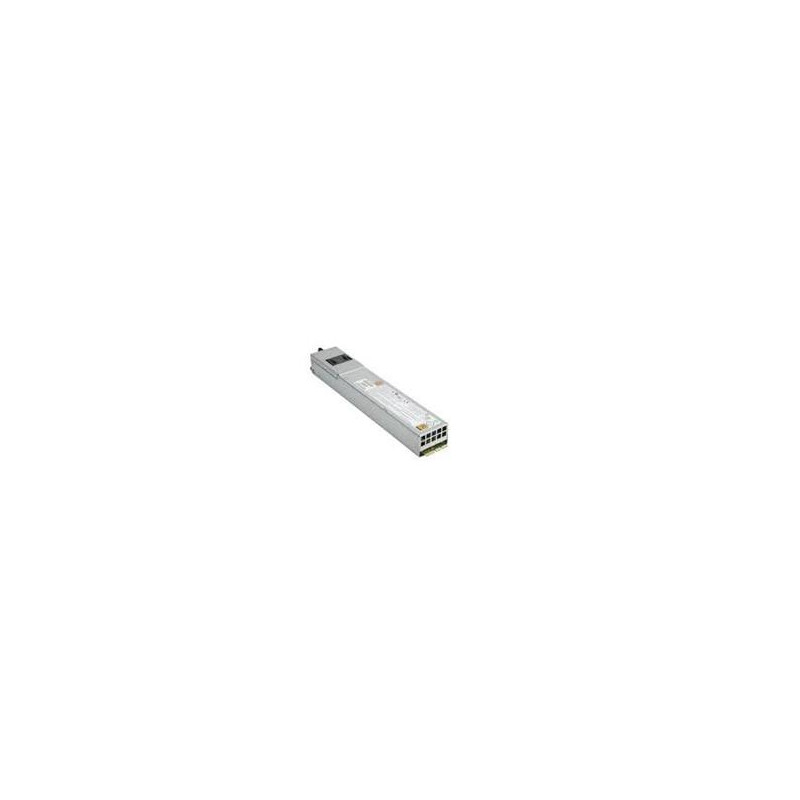

The Supermicro PWS-704P-1R is an 80 Plus Gold level redundant power supply capable of supplying 700W low-line and 750W high-line output power at 90% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 100,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Total Power Output
700W / 750W
Type
Module
Type of Power Supply
Power Supply
Form Factor
1U
Dimension (W x H x L)
54.5 x 40 x 320mm
+5V
N/A
+12V
58/62A
+3.3V
N/A
5V Standby
3A
Input Voltage Range
700W: 100-140Vac; 750W: 180-240Vac
Input Frequency Range
50-60Hz
Input Current Range
700W: 8.5-6.0A; 750W: 5.0-3.8A
Output Type
Gold Finger (54.5 Wide Molex)
8Pin / 4Pin (12V) Connector
N/A
PFC
Yes
Voltage / Current
Yes
Energy Efficiency
90% Peak
80 Plus Certification
80 Plus Gold
Validated Systems
SYS-1027R-73DARF, SYS-1027R-73DBRF
Validated Chassis
CSE-113TQ-R700UB, CSE-815TQ-R700UB
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
