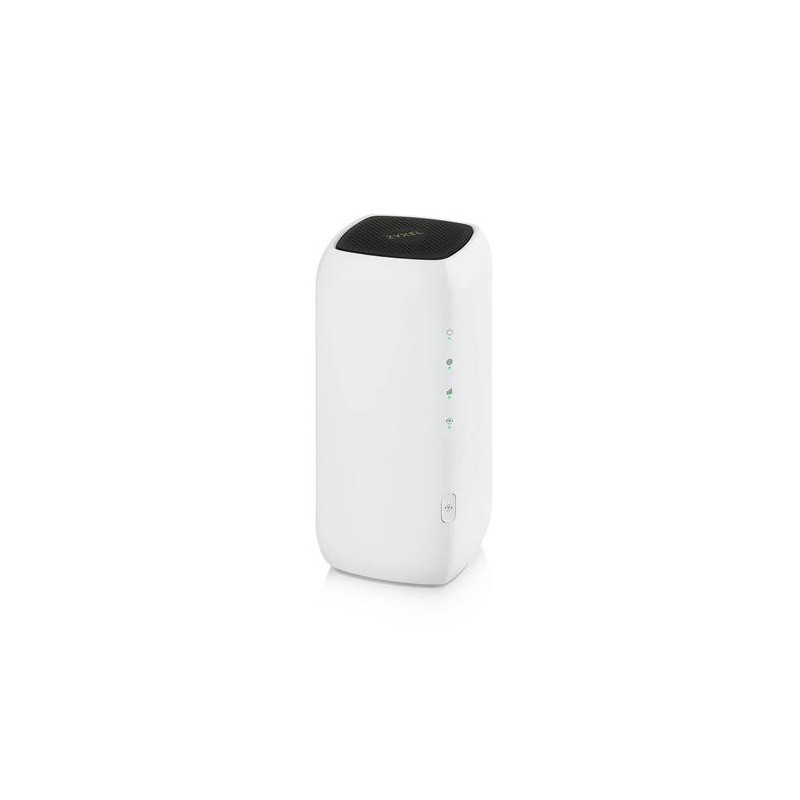

Zyxel FWA505, 5G NR Indoor Router, Standalone Nebula with 1 year Nebula Pro License, AX1800 WiFi, 1 x GB LAN, EU region

FWA505, 5G NR Indoor Router, Standalone/Nebula with 1 year Nebula Pro License, AX1800 WiFi, 1 x GB LAN, EU region

5G NR interiérový router
Rychlé, jednoduché a efektivní řešení – vše v jednom

S pevným bezdrátovým přístupem 5G využijete připojení k internetu na maximum
Představujeme FWA505: univerzální 5G NR interiérový router, který je ztělesněním snadného a spolehlivého připojení a cenově dostupného řešení. Zvolte router FWA505 a zvyšte svou produktivitu.

Ovládněte sílu 5G a WiFi 6
Zvolte router FWA505 s platformou Nebula a zažijte bezproblémovou konektivitu. Router FWA505 tradiční kabelové připojení nahrazuje technologií 5G, standardem WiFi 6 a snadným zprovozněním typu plug-and-play. Rozlučte se s pomalými domácími sítěmi a užívejte si výkonné připojení, které splní nároky domácích kanceláří i firemních uživatelů.
Router FWA505 navíc představuje flexibilní řešení pro staveniště, výstavní prostory, pop-up obchody a další lokality vyžadující dočasné připojení k internetu. S routerem FWA505 zapomenete na časově náročné nastavování.

System specifications
IP networking

Supports IPv4/IPv6 dual stack (NDP IPv6)

DHCP Client/server

Virtual Private Network (VPN) pass-through

Supports NAT/NAPT

Supports DMZ

Multiple APNs

Supports port forwarding

Routing

Supports bridge and router modes

Supports remote management under bridge mode

Static/dynamic route setting

IP firewall

DoS attack detection

Supports SPI

Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)

Filters LAN MAC address

Filters LAN IP address

Management

Supports local/remote device management and firmware upgrade via TR-069 and web GUI

PIN/PUK management

APN management

Operating frequency band selection

CLI/SSH (local and remote SSH access)

Supports UPnP IGD

Supports web server API to support APPs

Supports Zyxel Nebula app (iOS and Android) for easy installation and local management

WLAN feature

Auto channel selection

WiFi Protected Setup (WPS)

WiFi Multimedia (WMM)

WiFi-enabled devices: up to 64

Security: none, WPA2-Personal, WPA/WPA2, WPA3

MAC address filtering with 64 address supported

Multiple SSIDs/hide SSIDs

WLAN scheduling

Hardware specifications
5G NR interface

3GPP Release 15 standard-compliant

Supports DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78

Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM

Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM


Supports both NSA and SA modes

FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78

TDD: n38/n40/n41


Data rates:

5G SA: DL 4.7 Gbps; UL 2.5 Gbps*

5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*


Output power:

Class 2 (26 dBm) for 5G NR n41/n77/n78

Class 3 (23 dBm) for rest FDD/TDD NR bands

4G LTE interface

3GPP UE Category 19 standard-compliant

Supports DL 4×4 MIMO: B1/B3/B7/B38/B40/B41/B42/B43

Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM

Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM


Supports frequencies:

LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32

LTE-TDD: B38/B40/B41/B42/B43


Peak data rates:

Max. DL 1.6 Gbps/UL 211 Mbps*


Output power:

Class 3 (23 dBm ±2 dBm) for rest FDD/TDD LTE bands

WiFi air Interface

Wireless standard: IEEE 802.11b/g/n/a/ac/ax


Wireless speeds:

Link rates up to 1,774 Mbps* for 802.11ax DBDC


Internal WiFi antenna:

Dual-band & concurrent 2x2 + 2x2


WiFi antenna gain:

? 4 dBi for 2.4 GHz

? 5 dBi for 5 GHz

5G/4G antennas

Two TS9 connectors for external antennas**

Four embedded omni-directional antennas


Antenna Spec (Peak Gain)

700 MHz ~ 960 MHz: 2 dBi

1.4 GHz ~ 2.7 GHz: 5 dBi

3.3 GHz ~ 4.2 GHz: 5 dBi

Hardware interface

Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port

Two external antenna connectors (TS9 type)

One 3FF/Micro SIM card slot

One power on/off button

One WPS/WiFi on/off button

One reset button

One Int/Ext antenna switch

One USB 2.0 host port for file sharing


LED indicators:

Power indication

Signal strength

Internet connection status

WiFi AP status

WPS status

Power consumption
24 W (peak)

Physical specifications
Item

Dimensions (WxDxH)
103 x 103 x 222 mm (4.06” x 4.06” x 8.74”)

Weight
1145 g (2.53 lb.)

Packing

Dimensions (WxDxH)
252 x 171 x 110 mm (9.92” x 6.73” x 4.33”)

Weight
2450 g (5.40 lb.)

Environmental specifications
Operating

Temperature
-10°C to 40°C (14°F to 104°F)

Humidity
10% to 90% RH (non-condensing)

Storage

Temperature
-30°C to 70°C (-22°F to 158°F)

Humidity
0% to 95% (non-condensing)

Certifications
CE

NCC

BSMI

NBTC Certification

Package contents
Power adapter

Ethernet cable 1.8 m 8P8C

All specifications are subject to change without notice.

* The maximum data rates is a theoretical value. The actual data rates depend on the network environment.
** The TS9 connectors support 698 ~ 4200 MHz frequency.
