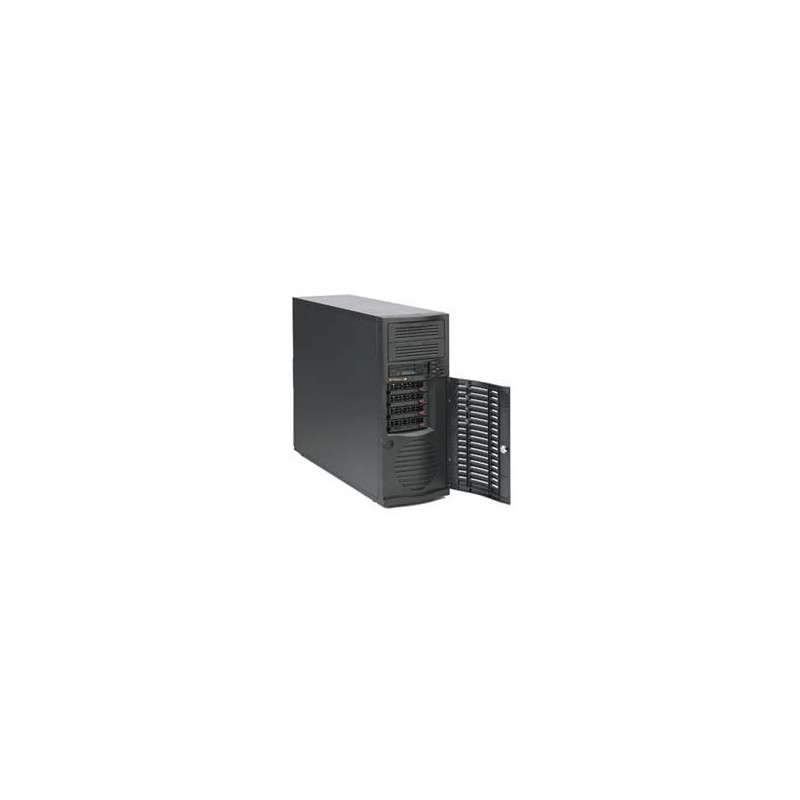

SUPERMICRO Mid-Tower 4x 3,5" HS SAS SATA, 2x 5,25", 668W(plat.)
Kovová skříň s formátem mid-tower podporuje E-ATX a ATX základní desky. Obsahuje 4 hot-swap SAS/SATA bay, 2x 5,25" bay a 668W 80PLUS Platinum napájecí zdroj. Má 7 expanzních slotů a chladicí fanoušky pro efektivní provoz. Rozměry: 426 x 178 x 531 mm. Vhodná pro výkonové PC.
9 311 Kč bez DPH 7 695 Kč
Popis produktu
Product SKUs
CSE-733TQ-668B SuperChassis 733TQ-668B
Form Factor
Mid-tower chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height 16.8" (426 mm)
Width 7" (178 mm)
Depth 20.9" (531 mm)
Net Weight 38 lbs (17.24 kg)
Gross Weight 40 lbs (18.14 kg)
Packaging (W x H x L) 24.2" (615 mm) x 11.8" (300 mm) x 26.4" (671 mm)
Available Color Black
Expansion Slots
7 full-height & full-length expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
Backplane
4x3.5" SAS2/SATA3 backplane w/SES-II
Peripheral Drives
2 x standard 5.25" drive bay
1 x 3.5" internal fixed drive bay
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 1 Network Activity LEDs
HDD activity LED
Power LED
System Overheat LED
Ports 2x USB 2.0 Port(s)
Systems Cooling
Fans 1 x 12cm rear exhaust fan(s)
1 x 9cm hot-swap cooling fan(s)
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
PS2 668W Multi-output power supply 80PLUS Platinum
Power Efficiency 92%
Total Output Power and Input 668W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 185 x 150 x 86 mm
Output Type 24pin ATX
-12V Max: 0.1A / Min: 0A
+12V Max: 54A / Min: 0.2A (100Vac - 240Vac)
+5V Max: 20A / Min: 0.1A
+3.3V Max: 15A / Min: 0.1A
+5Vsb Max: 2A / Min: 0A
Certification Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
HD Backplane CSE-SAS-733TQ 1 4x3.5" SAS2/SATA3 backplane w/SES-II
Cable(S) CBL-0049L 1 FRONT CABLE 16 PIN TO 16 PIN, LF
Cable(S) CBL-0084 1 16 PIN FRONT CTRL SPLIT CONVECTOR 6"
Cable(S) CBL-0160L 1 US POWER CORD 16AWG, PB FREE
Fan(s) FAN-0076L4 1 92X25MM 4-PIN PWM FAN W/ HUS FOR SC733
Fan(s) FAN-0077L4 1 120X38MM 4-PIN PWM FAN W/HUS FOR SC733 (REV. B)
Front Bezel MCP-210-73301-0B 1 Black Front Bezel for SC733T (hot-swap HDD)
Drive Tray(s) MCP-220-00081-0N 1 3.5" dummy HDD (hollow-panned) for MCP-220-00075-0B,RoHS/REACH,PBF
Drive Tray(s) MCP-220-00093-0B 4 Black gen 3.5 hot-swap 3.5"; HDD tray (w/o logo)
Drive Tray(s) CSE-PT36-BOEM 1 Black 5.25 drive tray w/ rail for SC942 w/o logo
Part(s) MCP-110-00020-0N 2 #632*5L flat head screw (for hot-swap 3.5" HDD tray)
Power Supply & Accessory PWS-668-PQ 1 PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi
Optional Parts List
Part Number Qty Description
Heatsink / Retention - - Please refer to our Thermal Components Matrix
Cable CBL-0140L - IDE 80-WIRE CABLE FOR DVD ROM, 60 CM, LF
Peripheral Drive(s) MCP-450-73101-0B - SC731D All-In-One Card Reader 3.5inch
Peripheral Drive(s) DVM-SONY-DVDRW-HB - BLACK SONY HALF HEIGHT DVD-RW IDE DRIVE, PBF
Front USB DVM-LITEONFH-DVDRWB - Black 5.25" IDE DVD-RW, LITEON
Peripheral Drive(s) DVM-LITE-DVDRW-HBT - Black 5.25" SATA DVD-RW, LITEON, PBF
Peripheral Drive(s) DVM-LITE-DVD-HBT - Black 5.25" SATA DVD, LITEON
Drive Trays MCP-220-73301-0N - 3.5" to 2.5" Converter HDD Tray
Motherboard (for CSE- 733TQ-668B)
X11SSZ-TLN4F X11SSZ-F X11SSZ-QF X11SAE
X11SAE-F X11SAE-M X11SCQ X11SCZ-Q
X11SCQ-L X11SSL-F X11SSL-CF X11SSL-nF
X11SSL X11SSM-F X11SSM X11SSH-CTF
X11SSH-TF
