Tento mid-tower šasi podporuje E-ATX, ATX i Micro-ATX základní desky. Obsahuje 4 pevné 3,5" a 2 standardní 5,25" disky. Napájení 1200W s účinností 94% a možností chlazení s ventilátory pro optimální výkon. Disponuje 2x USB 3.0 a audio portem.
Product SKUs
CSE-732D3-1K26B

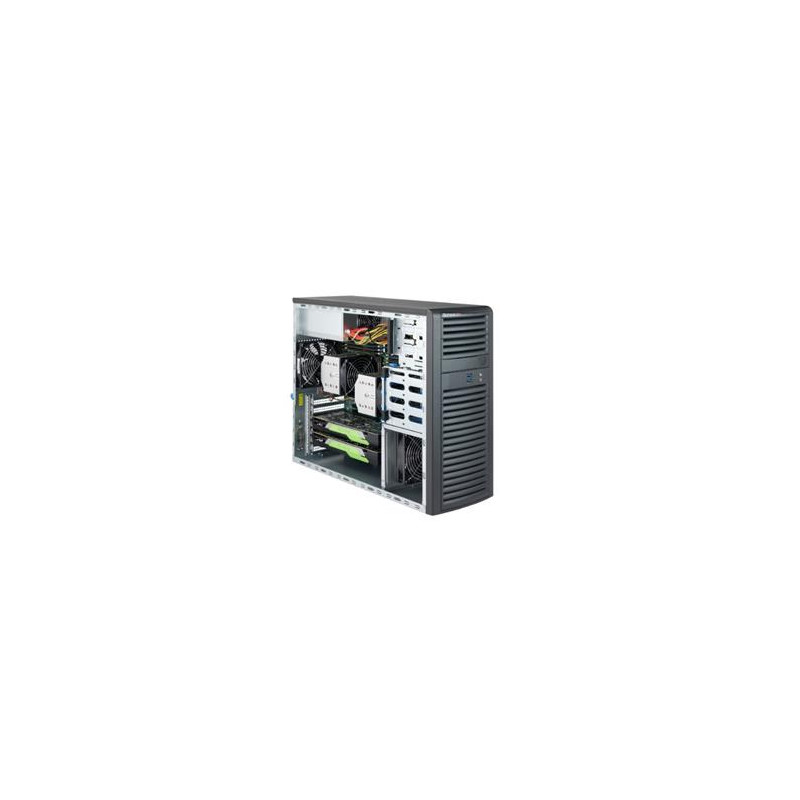

SuperChassis 732D3-1K26B
Form Factor
Mid-tower chassis support motherboard sizes E-ATX (12" x 13"), ATX (12" x 10") & Micro-ATX (9.6" x 9.6")
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
16.7" (424 mm)
Width
7.6" (193 mm)
Depth
20.68" (525 mm)
Gross Weight
30 lbs (13.61 kg)
Net Weight
27 lbs (12.25 kg)
Packaging (W x H x L)
11.97" (304 mm) x 21.38" (543 mm) x 25.28" (642 mm)
Available Color
Black
Expansion Slots
7x Full-height, Full-length expansion slot(s)
Drive Bays
Optional 4x 2.5" fixed drive bay
4x 3.5" fixed drive bay
Peripheral Drives
2x standard 5.25" drive bay
1x card reader module
Front Panel
Button
Power On/Off button
LED
HDD activity LED
1 Network activity LEDs
System Information LED
Port
2x USB 3.0 Port(s)
1x Audio Jack(s)
Systems Cooling
Fans
Optional 1x 12cm (front) cooling fan
1x 12cm rear exhaust fan(s)
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1200W PS2 Multi-output power supply
Power Efficiency
94%
Total Output Power and Input
1200W with Input 120 - 240Vac
1000W with Input 100 - 120Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
185 x 150 x 86 mm
Output Type
24pin ATX
-12V
Max: 0.3A / Min: 0A
+12V
Max: 99A / Min: 1A (120Vac - 240Vac)
Max: 83A / Min: 1A (100Vac - 120Vac)
+5V
Max: 20A / Min: 0.3A
+3.3V
Max: 20A / Min: 0.3A
+5Vsb
Max: 3A / Min: 0A
Certification
Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
UL/CB
