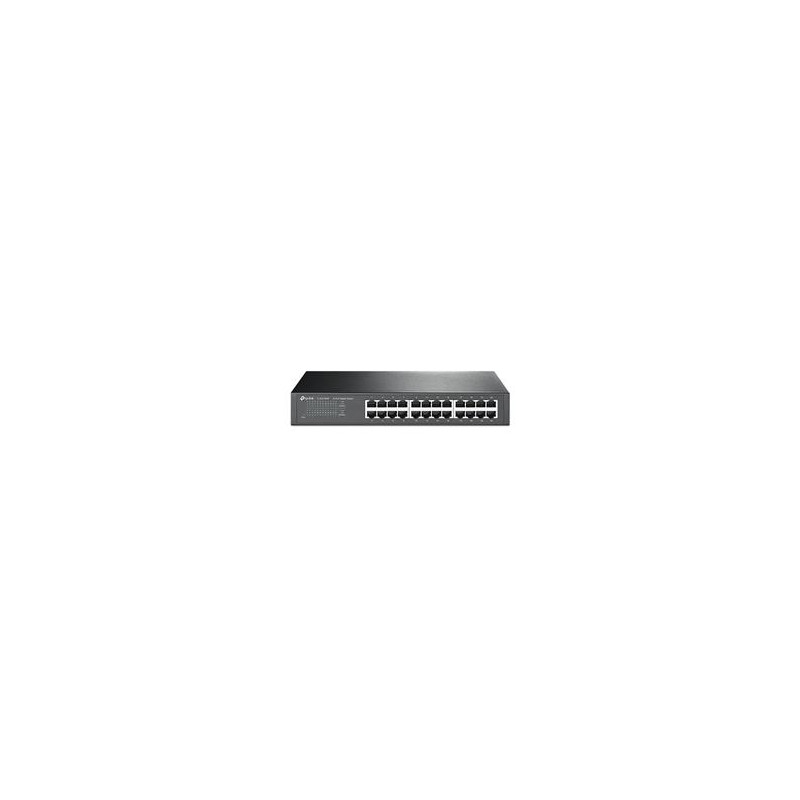

TL-SG1024D
24portový gigabitový stolní/rackový switch
24 portů 10/100/1 000 Mbit/s
Inovativní technologie úspory energie ušetří až 20 % spotřeby
Podporuje automatické učení adres MAC, Auto MDI/MDIX a automatické vyjednávání
Provedení typu Plug and Play
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 13.1W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 13.08W(220V/50Hz)
Max Heat Dissipation 44.63BTU/h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 10KB
Green Technology Yes
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
