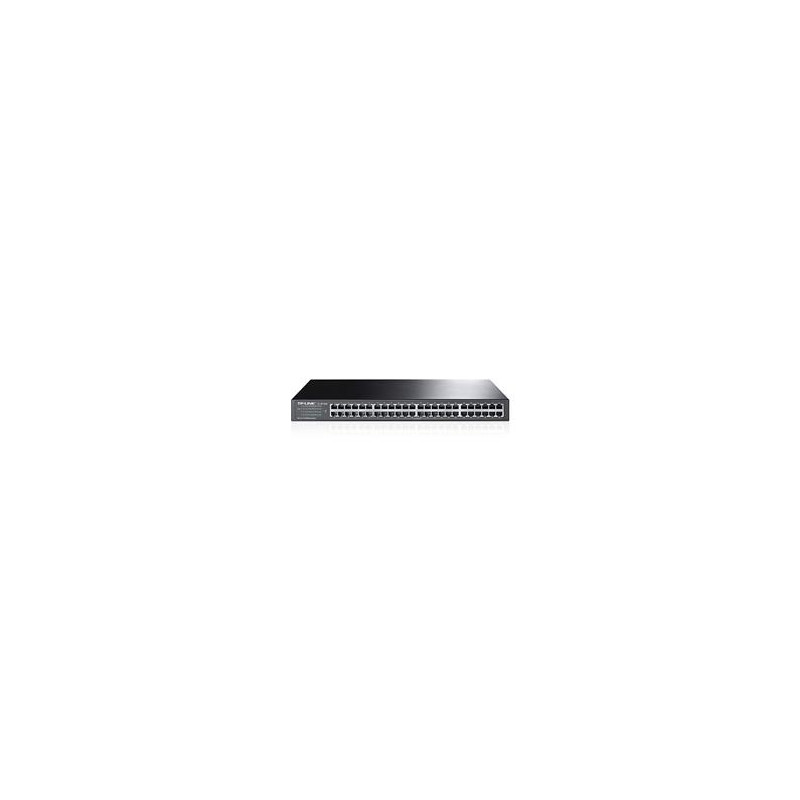

TL-SF1048
48portový rackový switch 10/100 Mbit/s
48 portů 10/100 Mbit/s RJ45
Inovativní technologie úspory energie ušetří až 50 % spotřeby
Podporuje automatické učení adres MAC a Auto MDI/MDIX
Ocelové pouzdro pro montáž do standardních 19" racků
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 48 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 9.9W (220V/50Hz)
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 9.9W(220V/50Hz)
Max Heat Dissipation 33.78BTU/h
PERFORMANCE
Switching Capacity 9.6Gbps
Packet Forwarding Rate 7.14Mpps
MAC Address Table 8K
Green Technology Innovative energy-efficient technology saves power up to 50%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 48-Port 10/100Mbps Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
