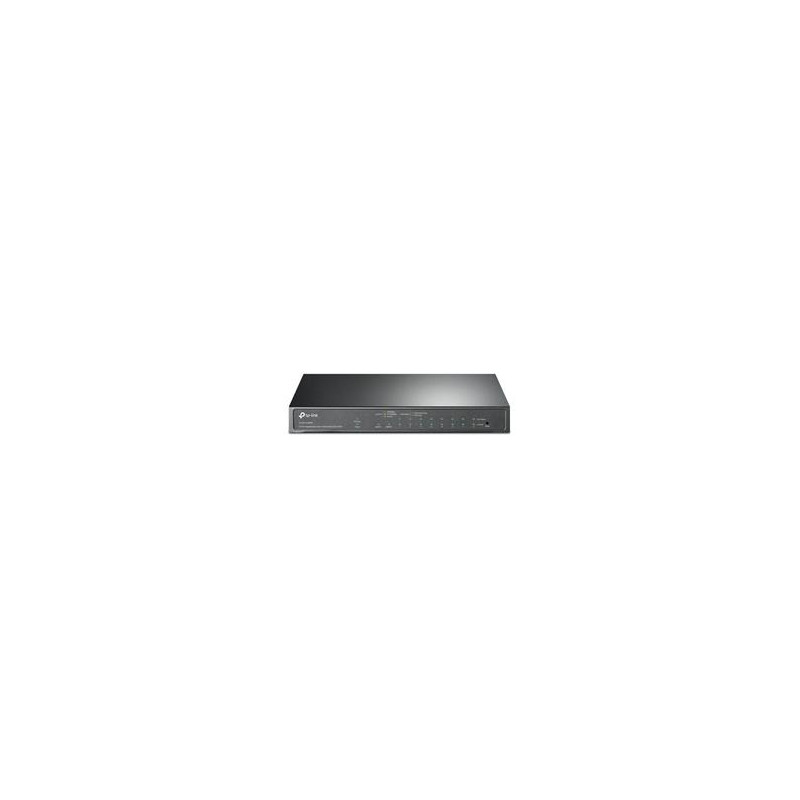

TL-SG1210MPE
10portový gigabitový Easy Smart switch
s 8 portami PoE+
9 gigabitových portov RJ45 a 1 kombinovaný gigabitový port SFP/RJ45
Switch je vybavený ôsmimi portami 802.3af/at PoE+ s výkonom napájania až 30 W na každý port a prenáša dáta aj napájanie cez jediný kábel
Podporuje napájanie PoE s celkovým výkonom až 123 W zo všetkých portov PoE*
Poskytuje monitorovanie siete, riadenie prevádzky podľa priorít, funkcie VLAN a automatické obnovenie PoE
Jednoduché nastavenie siete a pripojenie plug-and-play
Webové používateľské rozhranie a konfiguračný nástroj Easy Smart zjednodušujú nastavenie
Konštrukcia bez ventilátora znižuje spotrebu energie a eliminuje prevádzkovú hlučnosť
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface 9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption 7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 4 K
Jumbo Frame 16 KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE Extend Mode**
PoE Auto Recovery
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
