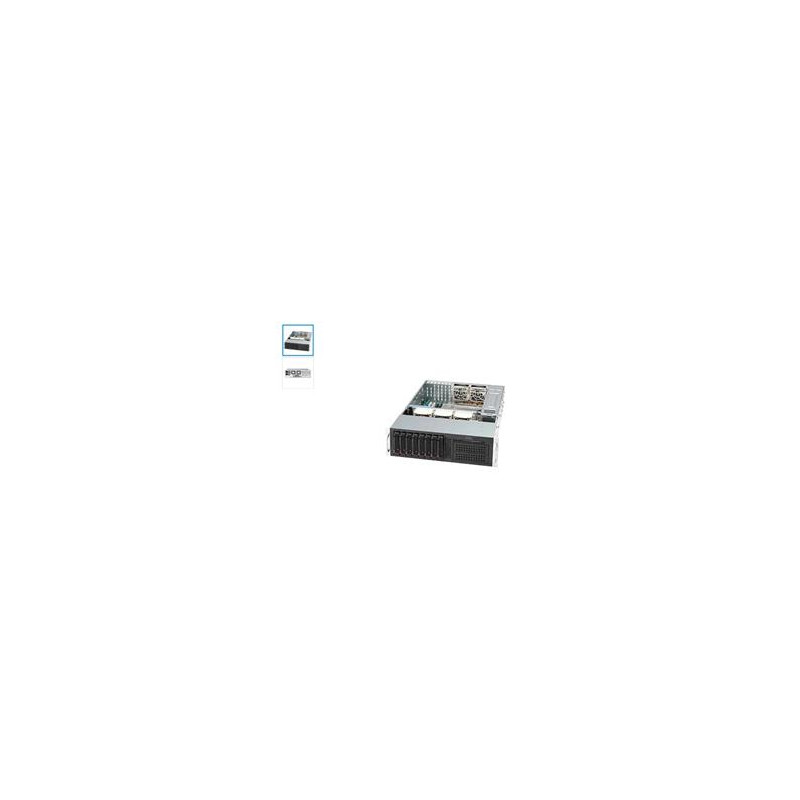

SUPERMICRO 3U chassis 8x 3,5" HS SAS SATA, 2x 5,25", slimDVD, 2x920W (80+titanium)

Skladem   3 ks
26 223 Kč bez DPH 21 672 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2378393
CSE-835TQ-R921B
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Product SKUs
SuperChassis 835TQ-R921B
Form Factor
  • 3U chassis support for motherboard size - E-ATX and ATX.
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 5.2" (132 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 75 lbs (34.02 kg)
Net Weight
  • 36 lbs (16.33 kg)
Packaging (W x H x L)
  • 26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm)
Available Color
  • Black
Expansion Slots
  • 7x Full-height, Full-length expansion slot(s)
Drive Bays
  • 8x 3.5" hot-swap SAS/SATA drive bay
  • 2x 5.25" drive bay
Backplane
  • SAS833/835 BACK PANEL WITH AMI MG9072
Peripheral Drives
  • 1x slim DVD-ROM drive bay
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • HDD activity LED
  • Power Fail LED
  • 2 Network Activity LEDs
  • Power LED
  • System Overheat LED
Systems Cooling
Fans
  • 2x 80mm rear hot-swap exhaust PWM fan(s)
  • 3x 80mm Hot-swap PWM Fans
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency
  • 94%
Total Output Power and Input
  • 920W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT825-8824
  • O/P: 12V/75
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL

Motherboard (for CSE-835TQ-R921B)
Motherboard Name
X10DRH-iTX10DRH-iLNX10DRH-iX10DRH-CTX10DRH-CLN4X10DRH-C
