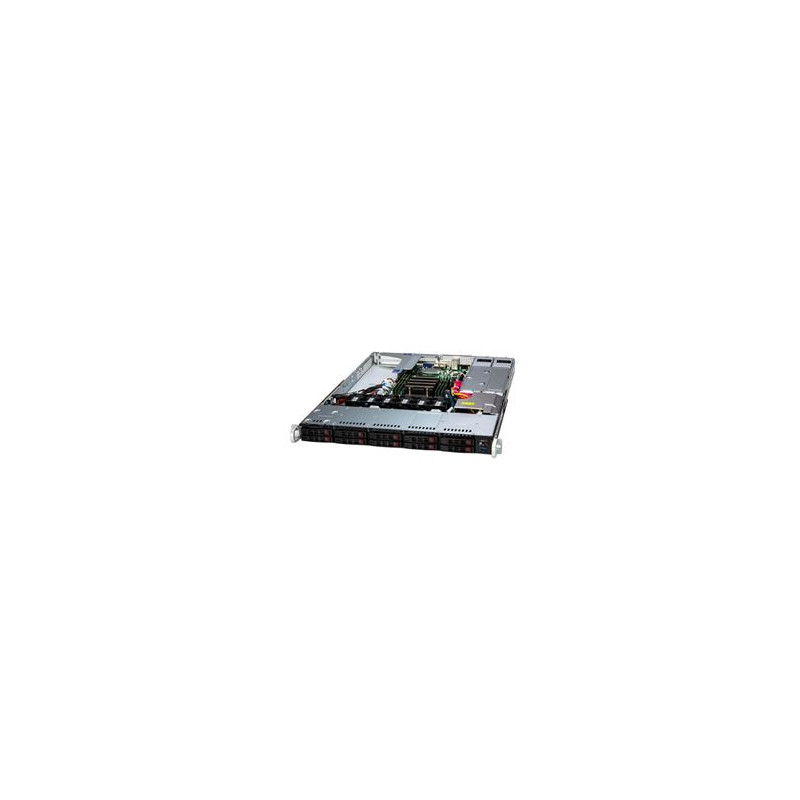

SUPERMICRO A+ Server 1U 1x SP6, 6x DDR5, 10x 2,5" (6xNVMe opt 4xSAS.), 2x860W titan), 2x10GbE, IPMI

Jednopaticový server s procesorem AMD EPYC™ 8004, až 576 GB paměti DDR5, 10 horko-vyměnitelnými 2,5" šachtami pro NVMe/SAS/SATA disky. Dvojité napájení 860W, dvojí 10GbE připojení a podpora IPMI pro bezpečné řízení.
Na objednávku
44 055 Kč bez DPH 36 409 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2357699
AS -1115SV-WTNRT
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
  1. Single Socket AMD EPYC™ 8004 Series Processor
  2. 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
    • 2 PCIe 5.0 x16 FHFL;
    • 1 PCIe 5.0 x16 LP
  4. Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
  5. 10 Hot-swap 2.5" SATA(default)/NVMe/SAS drive bays or 6 SATA/NVMe hybrid + 4 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)


    Product SKUs
    A+ Server AS -1115SV-WTNRT
    Motherboard
    Super H13SVW-NT
    Processor
    CPU
    • Single processor(s)
    • AMD EPYC™ 8004 Series Processor
    Core Count
    • Up to 64C/128T
    Note
    • Supports up to 225W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width or 2 single-width GPUs
    Supported GPU
    System Memory
    Memory
    • Slot Count: 6 DIMM slots
    • Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
    • View Memory Options
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 10GBASE-T with Broadcom® BCM57416
    • View AOC Options
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port
    • 2 RJ45 10 GBASE-T LAN ports
    USB
    • 2 ports(front)
    • 4 ports(rear)
    Video
    • 1 VGA port
    Serial
    • 1 COM port(Rear)
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    BIOS Features
    • ACPI 6.4
    • Plug and Play (PnP)
    • SMBIOS 3.5 or later
    • UEFI 2.8
    • USB Keyboard support
    Management
    Software
    Power configurations
    • 1U redundant 800/860W Titanium AC power supply
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U
    Model
    • CSE-116BTS-R000WNP
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 23.5" (597 mm)
    Package
    • 7.75" (H) x 23.5" (W) x 31.5" (D)
    Weight
    • Gross Weight: 33.5 lbs (15.2 kg)
    • Net Weight: 21 lbs (9.53 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Network Activity LEDs
    • Power status LED
    Buttons
    • Power On/Off button
    • Unit Identification (UID) button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    • Default
      • 2 PCIe 5.0 x16 FHFL slots
      • 1 PCIe 5.0 x16 LP slot
    • View AOC Options
    M.2
    • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key)
    Drive Bays / Storage
    Drive Bays Configuration
    • Default: Total 10 bays
      • 10 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
    • (*NVMe/SAS support may require additional storage controller and/or cables)
    • View NVMe Options
    • View Drive Options
    M.2
    System Cooling
    Fans
    • 6 Heavy duty counter-rotating 40x40x56mm Fan(s)
    Power Supply
    2x 860W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL) 54.5 x 40.25 x 322 mm
    Input 800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    860W: 240Vdc / 50-60Hz
    +12V Max: 66.67A / Min: 0A (100Vac-127Vac)
    Max: 71.67A / Min: 0A (200Vac-240Vac)
    Max: 71.67A / Min: 0A (Vdc-240Vdc)
    5V SB Max: 4A / Min: 0A
    Output Type Backplanes (gold finger)
    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)
