Product SKUs

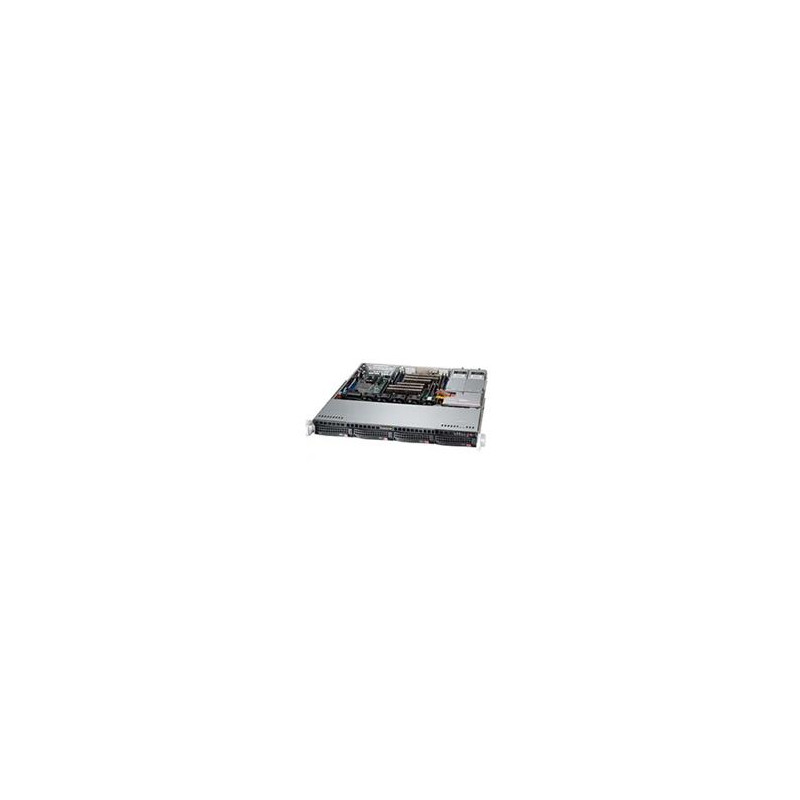

CSE-813MFTQ-R606CB SuperChassis 813MFTQ-R606CB
Form Factor
1U chassis, support motherboard sizes: ATX 12" x 10" and Micro ATX 9.6" x 9.6"
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 19.85" (503 mm)
Gross Weight 33.5 lbs (15.2 kg)
Packaging (W x H x L) 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)
Available Color Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA
SAS or enterprise SATA HDD only recommended
Backplane
4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
Peripheral Drives
1 x slim DVD-ROM drive bay
Optional 1 x USB + COM port tray
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED
Systems Cooling
Fans 4 x 40x28mm PWM fan(s)
Optional 2 x fans for AOC cooling
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40
Power Efficiency 94%
Total Output Power and Input 600W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 220 x 54.5 x 40.25 mm
Output Type Backplanes (gold finger)
-12V Max: NAA
+12V Max: 50A / Min: 0.5A (100Vac - 240Vac)
+5Vsb Max: 3A / Min: 0A
+12Vsb Max: NAA
Power Distributor PDB-PT813M-2424
O/P: 120/62
+5V Max: 25
+3.3V Max: 25
-12V Max: 0.6
Certification Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
