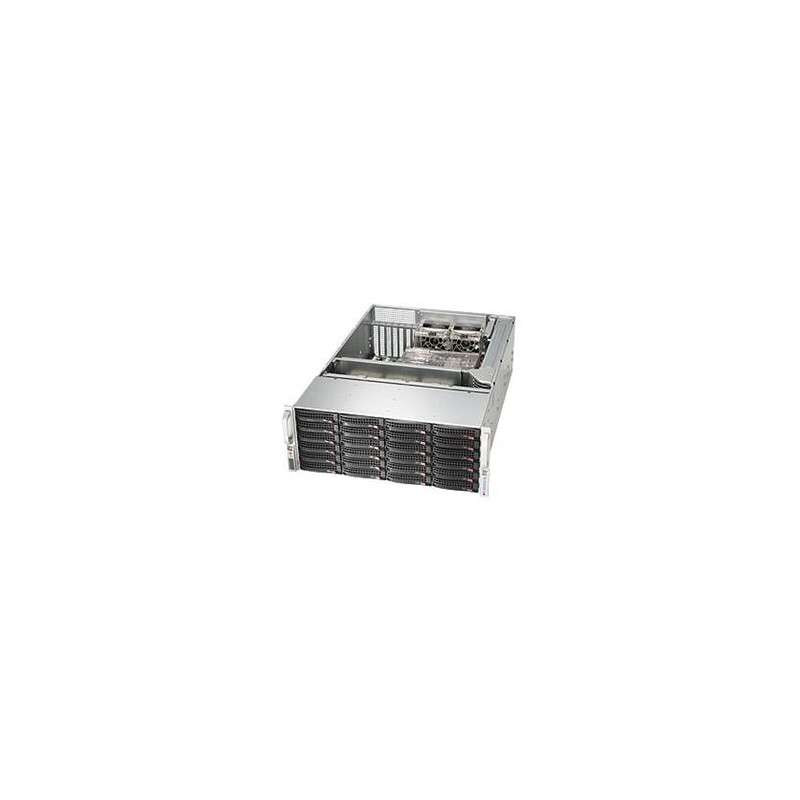

SUPERMICRO 4U chassis 24x 3,5" HS SAS SATA (singel expanSAS3 12Gb - 8643)+2x2,5" volitelný ,2x1200W (80PLUS Titanium)

Product SKUs CSE-846BE1C-R1K23B SuperChassis 846BE1C-R1K23B Form Factor 4U chassis support for max. motherboard size - EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10") Processor Support Single and Dual Intel® and AMD processors Dimensions Height 7" (178 mm) Width 17.2" (437 mm) Depth 26" (660 mm) Gross Weight 75 lbs (34.02 kg) Packaging (W x H x L) 34.3" (871 mm) x 26.5" (673 mm) x 13.5" (343 mm) Available Color Black Expansion Slots 7 full-height & full-length expansion slot(s) Drive Bays 24 x 3.5" hot-swap drive bay Backplane 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives Optional 2 x 2.5" hot-swap drive bay Optional 1 x 3.5" internal fixed drive bay Optional 2 x 2.5" internal fixed drive bay Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 80mm rear hot-swap exhaust PWM fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm Power Efficiency 96% Total Output Power and Input 1000W with Input 100 - 127Vac 1200W with Input 200 - 240Vac 1200W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 83A (100Vac - 127Vac) Max: 100A (200Vac - 240Vac) Max: 100A (200 - 240) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT846-2824 O/P: 12V/135 +5V Max: 50 +3.3V Max: 24 -12V Max: 0.6 Certification Titanium Certified Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-49003-0N 1 SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB HD Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Cable(S) CBL-0217L 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF Cable(S) CBL-0234L 1 Y CABLE FOR 4-PIN HDD Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing Fan(s) FAN-0185L4 3 80x80x38 mm, 10.5K RPM, Hot-swappable Middle Cooling Fan for X11 Generation SC846B Chassis Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846 Drive Tray(s) MCP-220-00075-0B 24 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT846-2824 1 PDB with 23pairs input connector support SC846B Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH Power Supply & Accessory MCP-290-84604-0N 1 SC846 PDB Cover Mounting Rail(s) MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag Rear Window MCP-240-84602-0N 1 846B rear window which support 2 X 2.5" HDD module and DVD Optional Parts List Part Number Qty Description Drive Trays MCP-220-84601-0N - Single 3.5" Fixed HDD Tray (RA cables required) Short Rail MCP-290-00058-0N - 19" to 26.6" rail set, Quick Release, Tool-less (for rev. K4 or later) DVD-ROM / DVD-RW MCP-220-84607-0N - Optional DVD kit for SC846B series chassis HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH HDD Kit MCP-220-84610-0N - 2G 2.5-inch x2 Drive Kit w/ Status LED for 846B Motherboard (for CSE- 846BE1C-R1K23B) X11SPH-nCTF H11DSI-NT X11SPH-nCTPF X11DPH-T X11DPH-I X11DPH-TQ H11DSi H11SSL-NC H11SSL-C H11SSL-i = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Servers (for CSE- 846BE1C-R1K23B) 6049P-E1CR24L 6049P-E1CR24H
