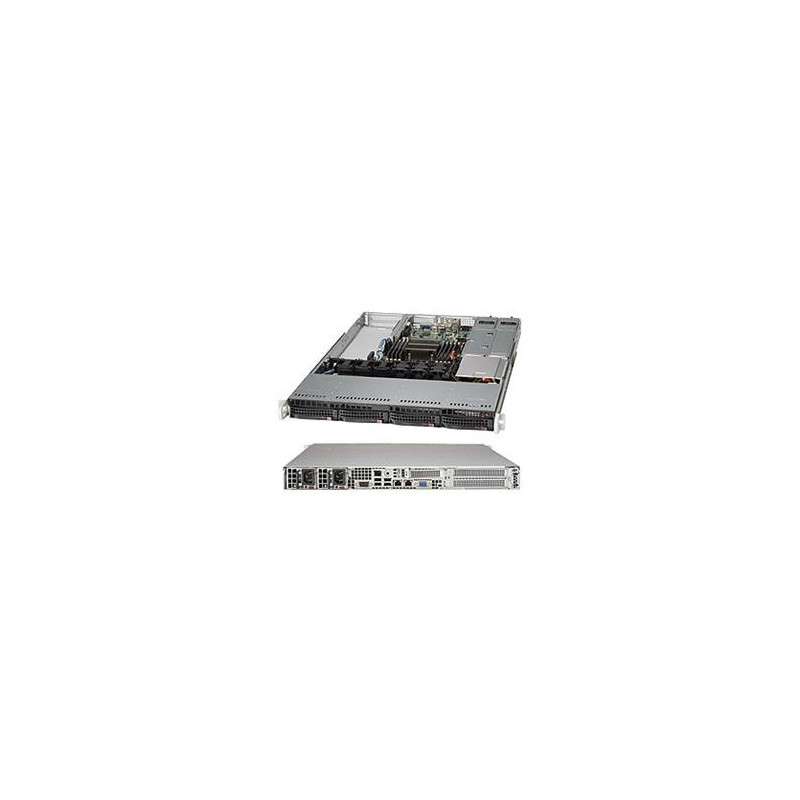

SUPERMICRO 1U chassis 4x 3,5" HS SAS SATA, 2x500W (80PLUS Platinum), WIO

Product SKUs CSE-815TQC-R504WB SuperChassis 815TQC-R504WB Form Factor Optimized for WIO (W series) motherboards Processor Support Dual, single Intel® / AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 25.6" (650 mm) Gross Weight 36 lbs (16.33 kg) Packaging (W x H x L) 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm) Available Color Black Expansion Slots 2 full-height & full-length expansion slot(s) 1 low-profile expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA SAS or enterprise SATA HDD only recommended Backplane 1U 4-Port 12Gbps Backplane Support 4x3.5 Peripheral Drives Optional 1 x slim DVD-ROM drive bay Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 3 x 40x56mm counter-rotation PWM fan(s) Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 500W Redundant Single Output power supply W/PMbus 54.5mm width Power Efficiency 94% Total Output Power and Input 500W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 320 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) -12V Max: NAA +12V Max: 42A / Min: 0.5A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A +12Vsb Max: NAA Power Distributor PDB-PT112-2420 O/P: 12V/54 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A TUV/CB UL/CUL
