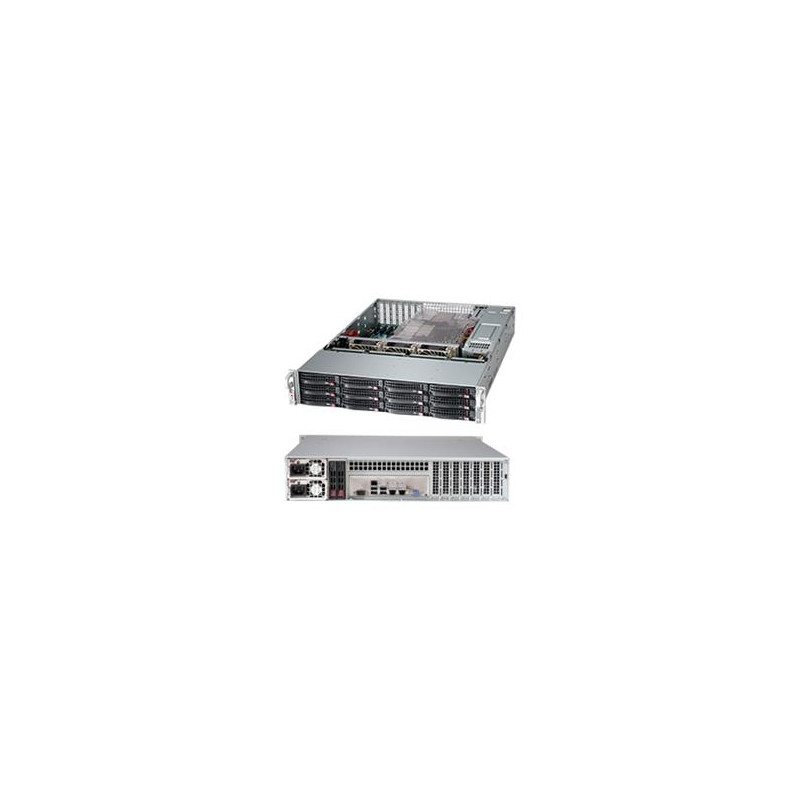

SUPERMICRO 2U chassis 12x 3,5" HS SAS3 SATA (Dual Expander 12G) + volitelný 2x 2,5", 2x920W (80PLUS Platinum)

Product SKUs CSE-826BE2C-R920LPB SuperChassis 826BE2C-R920LPB Form Factor 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed Processor Support Dual and Single Intel® and AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) Gross Weight 55 lbs (24.95 kg) Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) Available Color Black Expansion Slots 7 low-profile expansion slot(s) Drive Bays 12 x 3.5" hot-swap SAS/SATA drive bay with SES3 Backplane 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 3 x 8cm high-performance PWM fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 920W Redundant Platinum Super Quiet power supply W/PMbus Power Efficiency 94% Total Output Power and Input 920W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) -12V Max: NAA +12V Max: 75A / Min: 1A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A +12Vsb Max: NAA Power Distributor PDB-PT826-8824 O/P: 12V/135 +5V Max: 40 +3.3V Max: 24 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 HD Backplane BPN-SAS3-826EL2 1 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B Power Supply & Accessory PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF Optional Parts List Part Number Qty Description Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length HDD Kit MCP-220-82609-0N - Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B HDD Tray Converter MCP-220-00043-0N - Black hotswap gen 4 3.5 to 2.5 HDD tray Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B Motherboard (for CSE- 826BE2C-R920LPB) X10DRi-LN4+ X10DRi-T4+ X10DRC-T4+ X10DRC-LN4+ X10DRi X10DRi-T X10DRH-I X10DRH-iT X10DRH-CT X10DRH-C X10DRH-iLN X10DRH-CLN4
