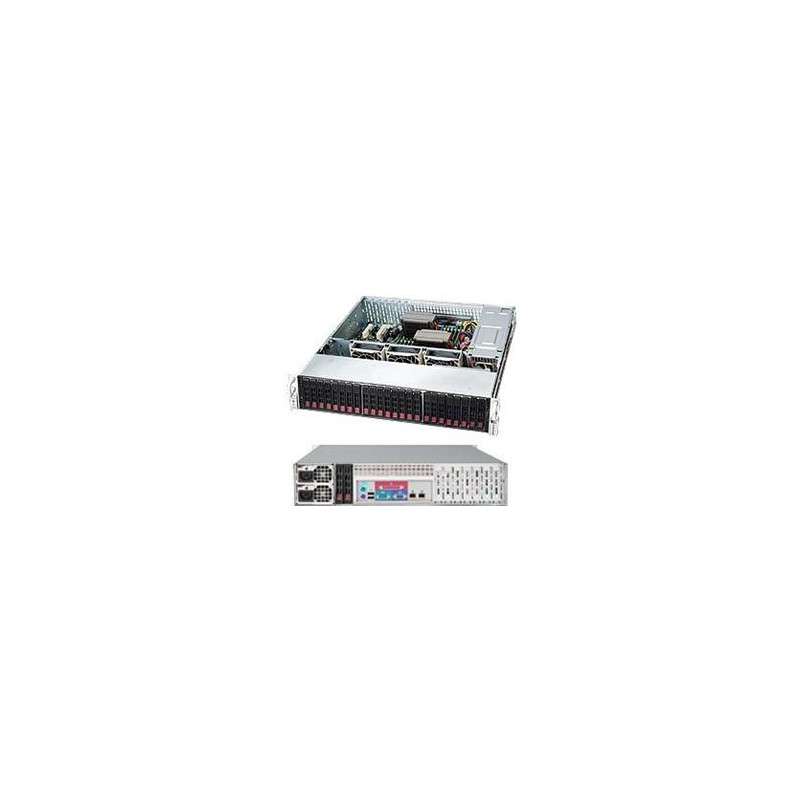

SUPERMICRO 2U chassis 24x 2,5" HS SAS SATA (6x SFF 8087), 2x920W

Serverový konfigurátor

Key Features 2U chassis support for max. motherboard size - 13" x 13.68", E-ATX and ATX. Support up to 12"x13" MB with rear 2.5" HDD option installed. 24 x 2.5" hot-swap SAS/SATA drive bay 24-port 2U SAS 6Gbps direct-attached backplane, support up to 24x 2.5-inch SAS2/SATA3 HDD/SSD 1U 920W Redundant Platinum Super Quiet power supply W/PMbus 7 low-profile expansion slot(s) 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s) Optional 5 x 6cm fan cooling module for 826B/216B Form Factor 2U chassis support for max. motherboard size - 13" x 13.68", E-ATX and ATX. Support up to 12"x13" MB with rear 2.5" HDD option installed. Processor Support Dual, single Intel® / AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 24.8" (630 mm) Gross Weight 53 lbs (24.04 kg) Packaging (W x H x L) 26.5" (673 mm) x 10.5" (267 mm) x 38" (965 mm) Available Color Black Expansion Slots 7 low-profile expansion slot(s) Drive Bays 24 x 2.5" hot-swap SAS/SATA drive bay Backplane 24-port 2U SAS 6Gbps direct-attached backplane, support up to 24x 2.5-inch SAS2/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power LED Power Fail LED System Overheat LED Motherboard (for CSE- 216BA-R920LPB) X9DR7-TF+ X9DRE-TF+ X9DR7-LN4F (-JBOD) X9DRE-LN4F X9DRH-7F X9DRH-7TF X9DRH-iF X9DRH-iTF X9DRD-7LN4F-JBOD X9DRD-EF X9DRD-7LN4F X8DTN+ X8DTN+-LR X8DA3 X8DAi X9DRH-iF-NV X10DRi-LN4+ X10DRi-T4+ X10DRi X10DRi-T X10DDW-i X10DDW-iN Systems Cooling Fans 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s) Optional 5 x 6cm fan cooling module for 826B/216B Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 920W Redundant Platinum Super Quiet power supply W/PMbus Power Efficiency 94% Total Output Power and Input 920W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 75A / Min: 1A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL
