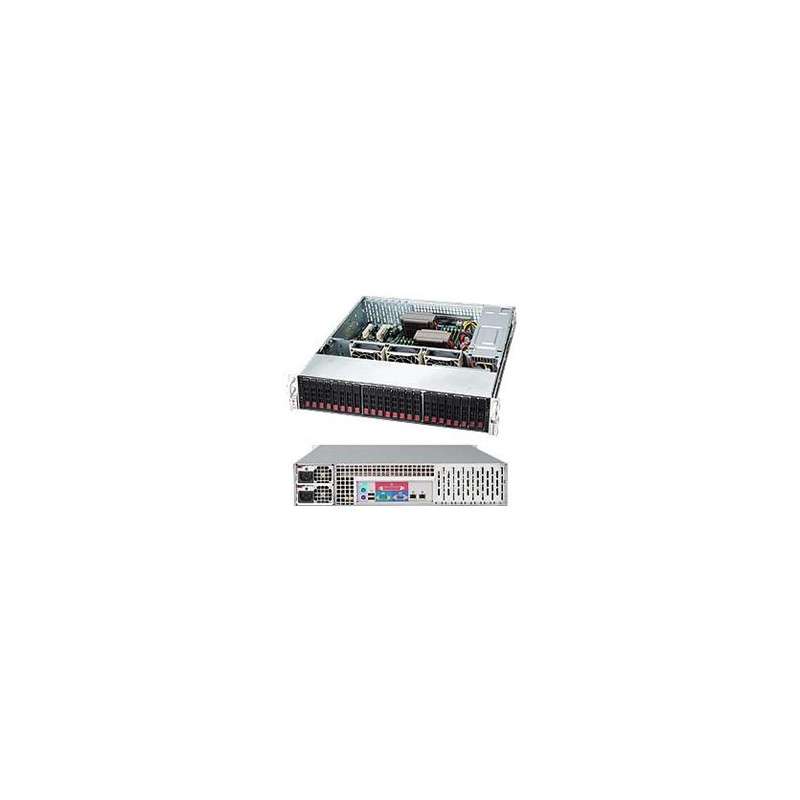

SUPERMICRO 2U chassis 24x 2,5" HS SAS SATA (12Gb s SAS3 Expander - 1x SFF 8643), 2x920W (80PLUS platinum)

Product SKUs CSE-216BE1C-R920LPB SuperChassis 216BE1C-R920LPB Form Factor 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed Processor Support Dual, single Intel® / AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 24.8" (630 mm) Gross Weight 53 lbs (24.04 kg) Packaging (W x H x L) 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm) Available Color Black Expansion Slots 7 low-profile expansion slot(s) Drive Bays 24 x 2.5" hot-swap SAS/SATA drive bay Optional 2 x 2.5" hot-swap drive bay Backplane 24-port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 3 x 8cm high-performance PWM fan(s) Optional 5 x 6cm 4pin high performance fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 920W Redundant Platinum Super Quiet power supply W/PMbus Power Efficiency 94% Total Output Power and Input 920W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) -12V Max: NAA +12V Max: 75A / Min: 1A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A +12Vsb Max: NAA Power Distributor PDB-PT216-2824 O/P: 12V/100 +5V Max: 30 +3.3V Max: 24 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 HD Backplane BPN-SAS3-216EL1 1 24-port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(S) CBL-0088 3 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM) Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Cable(S) CBL-0182L 1 PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF Cable(S) CBL-0217L 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF Fan(s) FAN-0204L4 3 80x80x38 mm, 7K RPM, Middle Cooling Fan w/ New Plastic Mater Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,219 Front Panel TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219 Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5 Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray Power Distributor PDB-PT216-2824 1 PDB with 23pairs input connectors for SC216B Power Supply & Accessory PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF Optional Parts List Part Number Qty Description Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length HDD Kit MCP-220-82609-0N - Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B Fan Kit MCP-320-82603-0N - 6cm fan cooling module for 826B/216B (5X6cm fan) Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B Motherboard (for CSE- 216BE1C-R920LPB) X9DAi X10DRi-LN4+ X10DRi-T4+ X10DRC-T4+ X10DRC-LN4+ X10DRi X10SRH-CLN4F X10DRi-T X10DRH-I X10DRH-iT X10DRH-CT X10DRH-C X10DRH-iLN X10DRH-CLN4
