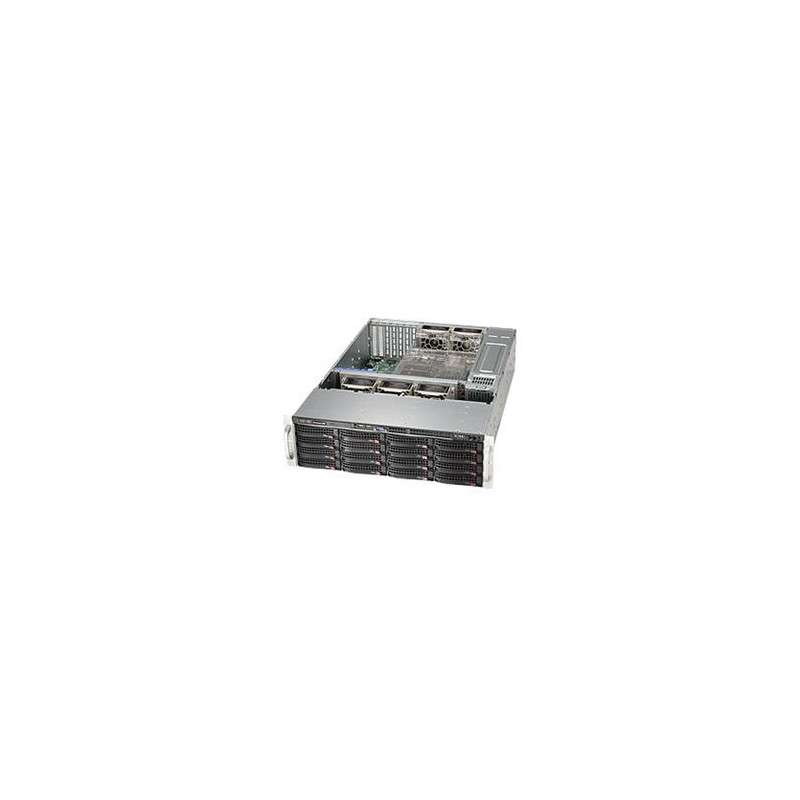

SUPERMICRO 3U chassis 16x 3,5" HS SAS3 (Expnader SAS3 12Gb - 1x SFF 8643), 2x1000W (80PLUS Titanium)

Product SKUs CSE-836BE1C-R1K03B SuperChassis 836BE1C-R1K03B Form Factor 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX Processor Support Dual and Single Intel® and AMD processors Dimensions Height 5.2" (132 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) Gross Weight 72 lbs (32.66 kg) Packaging (W x H x L) 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm) Available Color Black Expansion Slots 7 full-height & full-length expansion slot(s) Drive Bays 16 x 3.5" hot-swap SAS/SATA drive bay with SES2 Optional 2 x 2.5" hot-swap drive bay Backplane 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Power Fail LED System Information LED Systems Cooling Fans 3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus Power Efficiency 96% Total Output Power and Input 800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac 1000W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 66.7A (100Vac - 127Vac) Max: 83A (200Vac - 240Vac) Max: 83A (200 - 240) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT826-8824 O/P: 12V/135 +5V Max: 40 +3.3V Max: 24 -12V Max: 0.6 Certification Titanium Certified Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB HD Backplane BPN-SAS3-836EL1 1 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(S) CBL-0088L 1 10.5" 4PIN FAN POWER CORD FOR 743X-645,PBF CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836 Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836 Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B Part(s) MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835 Power Supply & Accessory PWS-1K03A-1R 2 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N) Optional Parts List Part Number Qty Description Rail MCP-290-00058-0N - Quick-release outer rail for square hole short-depth rack (19"~26.4") Hot-swap Capable Drive Kit MCP-220-83605-0N - Rear 2 X 2.5 Hot swap HDD kit for 836B/835B Hot-swap Capable Drive Kit MCP-220-83608-0N - 2.5x2 Hot-swap HDD kit w/ fail LED for 836B(H)/835B Hot-swap Capable Drive Kit MCP-220-81504-0N - 2.5-in hot-swap slim floppy size drive kit with fail LED Hot-swap Capable Drive Kit MCP-220-81506-0N - 2.5-in hot-swap slim DVD size drive kit with fail LED DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT3 - BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS,HF,RoHS/REACH,PBF DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH Motherboard (for CSE- 836BE1C-R1K03B) X9DR3-F X9DRi-F X9DRH-7F X9DRH-7TF X9DRH-iF X9DRH-iTF X9DRD-iF X9DRD-7LN4F-JBOD X9DRD-EF X9DA7 X9DAE X9DAi X9DBL-3F X9DBL-iF X9DRD-7LN4F X9DBL-3 X9DBL-i X9DRD-LF X9DRL-7F X9DRL-EF X9DB3-TPF X9DB3-F X9DBi-TPF X9DBi-F X10SLA-F X9DRH-iF-NV X10SRL-F X10DRi-LN4+ X10DRi-T4+ X10DRC-T4+ X10DRC-LN4+ X10SRH-CF X10SRH-CLN4F X10DAX X10DRL-CT X10DRH-I X10DRH-iT X10DRH-CT X10DRH-C X10DRL-iT X10DRL-C X10DRH-iLN X10DRH-CLN4
