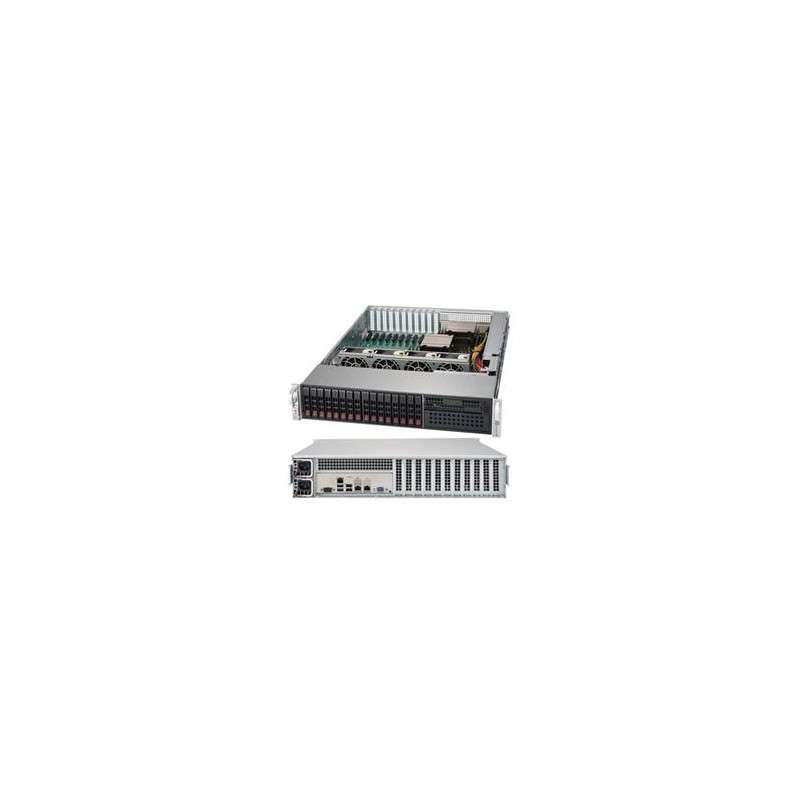

SUPERMICRO 2U chassis 16x 2,5" HS SAS SATA (4x 8643), 1x 5,25", 2x1000W (80+Titanium)

Product SKUs CSE-213XAC-R1K05LP SuperChassis 213XAC-R1K05LP Form Factor 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2" Processor Support Dual and Single Intel® and AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 25.6" (650 mm) Gross Weight 58 lbs (26.31 kg) Packaging (W x H x L) 26.4" (671 mm) x 11.3" (287 mm) x 39.8" (1011 mm) Available Color Black Expansion Slots 11 low-profile expansion slot(s) Drive Bays 16 x 2.5" hot-swap SAS3/SATA drive bay Backplane 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives Optional 1 x slim DVD-ROM drive bay Optional 2 x USB 2.0 ports Optional 1 x COM port tray 1 x standard 5.25" drive bay Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Power Fail LED System Information LED Systems Cooling Fans 4 x 8cm high-performance PWM fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 800/1000W Redundant Power Supply 38mm Width Power Efficiency 96% Total Output Power and Input 800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 360 x 38 x 40 mm Output Type Backplanes (gold finger) +12V Max: 66.7A (100Vac - 127Vac) Max: 83A (200Vac - 240Vac) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT213X-3824 O/P: 12V/100A +5V Max: 45A +3.3V Max: 24A -12V Max: 0.6A Certification Titanium Certified Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
