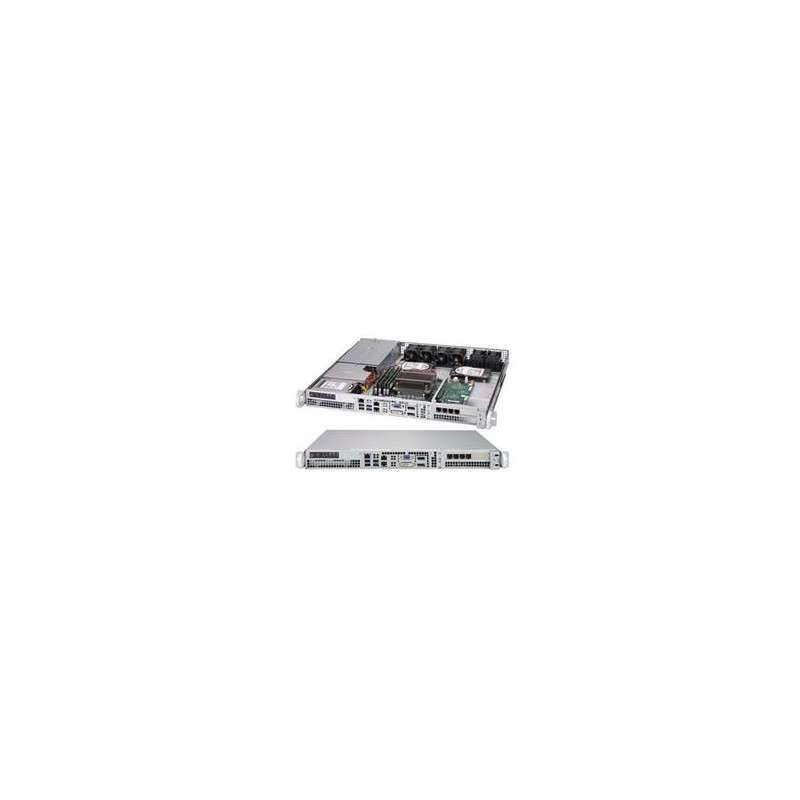

SUPERMICRO mini1U chassis 2x internal Drive Bays 2,5", 2x400W (Platinum) Front

Product SKUs CSE-515-R407 SuperChassis 515-R407 Form Factor Support STD and WIO MB size up to 12?x13? Processor Support Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 16.9" (429 mm) Gross Weight 18 lbs (8.16 kg) Packaging (W x H x L) 27" (686 mm) x 8" (203 mm) x 24" (610 mm) Available Color No Paint Expansion Slots Up to 2 full height expansion slot(s) Drive Bays Up to 2 x 2.5" fixed with bracket Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Systems Cooling Fans 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm Power Efficiency 94% Total Output Power and Input 400W with Input 100 - 240Vac 400W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 220 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) +12V Max: 33A (100Vac - 240Vac) +5Vsb Max: 3A / Min: 0A Power Distributor PDB-PT514-2824 O/P: 12V/54 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Cable(S) CBL-0306L 1 FRONT CTRL CABLE ROUND 16 TO 16 PIN RIBBON, 65CM Fan(s) FAN-0157L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED) Cooling Fan & Accessory MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan Cooling Fan & Accessory MCP-320-81801-0B 3 SC818G 2x 4056 fan tray,HF,RoHS,PBF Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) Drive Tray(s) MCP-220-51401-0N 1 Dual 2.5 HDD bracket (bracket base not follow std 2.5" HDD screw holes) Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Power Supply & Accessory PWS-407P-1R 2 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05" Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type Rear Window MCP-240-51503-0N 1 rear window for SC515 redundant PWS chassis Optional Parts List Part Number Qty Description Rail MCP-290-00056-0N - Quick-release outer rail for square hole short-depth rack (19"~26.4") Chassis parts MCP-240-51502-0N - Riser card bracket for WIO MB in SC515 Cable CBL-0296L - 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG Cable CBL-0082L - Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG Cable CBL-0156L - Front ctrl cable Round 16 pin to 16 pin, 40cm, 28AWG Cable CBL-0260L - US power cord 18AWG 6ft, PBF (default for low watt) Rail MCP-290-00064-0N - Thumb screw adapter of inner rail for 1U 17.2 Motherboard (for CSE- 515-R407) X10SDV-7TP8F X10SDV-7TP4F X10SDV-4C-7TP4F X10SDV-2C-7TP4F X10SRM-TF X10SRM-F X11SPi-TF X11SPL-F X11SPM-TF X11SPM-TPF X11SPM-F X11SRM-F X11SRM-VF X11SCH-F X11SCH-LN4F X11SCM-F X11SCM-LN8F X11SCL-F X11SCL-LN4F X10SDV-TP8F X10SDV-2C-TP8F X10SDV-2C-TP4F X10SDV-4C+-TP4F X10SDV-12C+-TP8F = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Servers (for CSE- 515-R407) 1018D-FRN8T 1019D-FRN8TP
