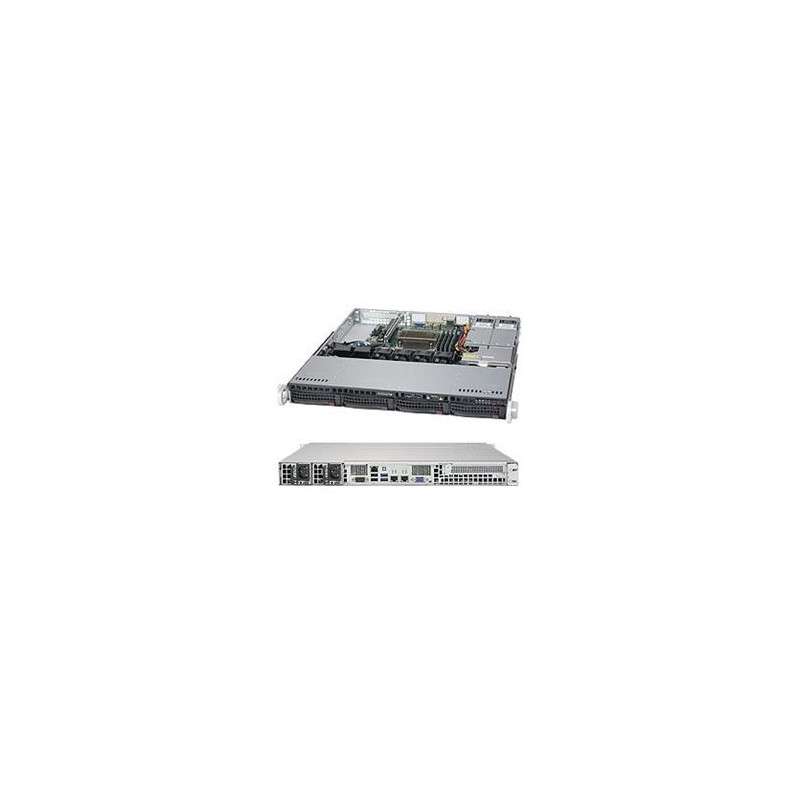

SUPERMICRO 1U chassis 4x 3,5" HS SAS SATA (12G), 2x400W (Platinum)

Product SKUs CSE-813MFTQC-R407CB SuperChassis 813MFTQC-R407CB Form Factor 1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6". Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.85" (503 mm) Gross Weight 33.5 lbs (15.2 kg) Packaging (W x H x L) 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm) Available Color Black Expansion Slots 1 full height expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA Backplane 1U 4-Port 12Gbps Backplane Support 4x3.5 Peripheral Drives Optional 1 x Slim DVD-ROM Drive Optional 1 x USB + COM port tray Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED System Information LED Systems Cooling Fans 4 x 40x28mm PWM fan(s) Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm Power Efficiency 94% Total Output Power and Input 400W with Input 100 - 240Vac 400W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 220 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) +12V Max: 33A (100Vac - 240Vac) +5Vsb Max: 3A / Min: 0A Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5 Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(S) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH CD-ROM & Accessory CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C) Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M) Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT813M-2424 1 Power Distributor With 24pin for SC813M Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Power Supply & Accessory PWS-407P-1R 2 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH Power Supply & Accessory MCP-250-00016-0V 1 Redundant Silver plastic PDB cover for SC813M,113M Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05" Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type Mounting Rail(s) MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2 Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS Optional Parts List Part Number Qty Description Front USB MCP-220-00114-0N - Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH Front USB MCP-220-00129-0B - Black 2x USB3.0/COM port tray in slim FDD bay Mounting Rail CSE-PT52L - Sliver chassis rail set for SC813M,515,113M Front Bezel CSE-PTFB-813LB - BLACK SC813 FRONT BEZEL, PB FREE Peripheral Drive(s) MCP-220-00110-0B - Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF Motherboard (for CSE- 813MFTQC-R407CB) X10SRM-TF X10SRM-F X11SPi-TF X11SSH-GTF-1585 X11SSH-GF-1585 X11SSH-GTF-1585L X11SSH-GF-1585L X11SPL-F X11SPM-TF X11SPM-TPF X11SPM-F X11SRM-F X11SRM-VF H11SSL-NC H11SSL-C H11SSL-i = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Servers (for CSE- 813MFTQC-R407CB) 5019P-MTR 5018D-MHR7N4P
