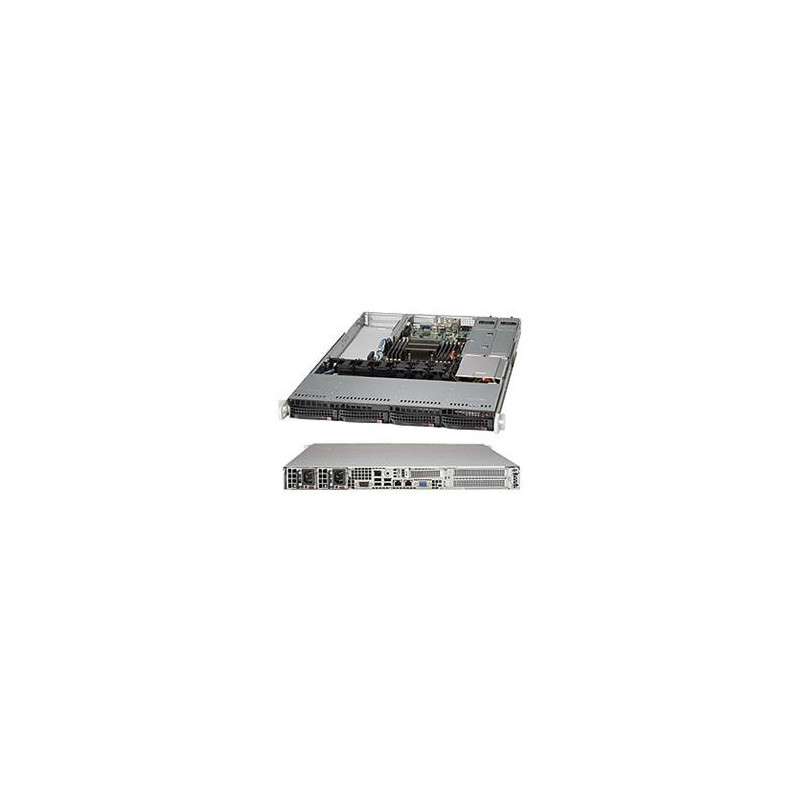

SUPERMICRO 1U chassis 4x 3,5" HS SAS SATA, 2x500W (80PLUS Platinum), WIO, X11

Product SKUs CSE-815TQC-R504WB2 SuperChassis 815TQC-R504WB2 Form Factor Optimized for X11 WIO (W series) motherboards, support MB size up to 12.3" x 13.4" Processor Support Single and Dual Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 25.6" (650 mm) Gross Weight 36 lbs (16.33 kg) Packaging (W x H x L) 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm) Available Color Black Expansion Slots 2 full-height & full-length expansion slot(s) 1 low-profile expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA SAS or enterprise SATA HDD only recommended Backplane 1U 4-Port 12Gbps Backplane Support 4x3.5 Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 3 x 40x56mm counter-rotation PWM fan(s) Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 500W Redundant Single Output power supply W/PMbus 54.5mm width Power Efficiency 94% Total Output Power and Input 500W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 320 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) -12V Max: NAA +12V Max: 42A / Min: 0.5A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A +12Vsb Max: NAA Power Distributor PDB-PT112-S2424 O/P: 12V/54 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5 Cable(S) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF Cable(S) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH CD-ROM & Accessory CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS Fan(s) FAN-0156L4 3 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH Front Panel FPB-FP815U 1 815 UIO front control board (U) Cooling Fan & Accessory CSE-PT0135 1 FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS Cooling Fan & Accessory MCP-340-00035-0B 3 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT112-S2424 1 WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 Part(s) MCP-120-00030-0N 1 Blank LP L-bracket (1 raw of capsule hole) Part(s) MCP-120-00053-0N 2 Blank FH L bracket w/o SCSI cutout for SC825,836,846,743 Power Supply & Accessory PWS-504P-1R 2 500W 1U Redundant PWS W/ 54.5MM Wide Power Supply & Accessory MCP-250-81502-0N 1 SC815 Redundant Power Distributor Cover Mounting Rail(s) MCP-290-00054-0N 1set Rail set, quick/quick, optional for 1U 17.2 Rear Window MCP-240-00098-0N 1 WIO rear window for SC113,SC116, SC815 Redundant PWS Optional Parts List Part Number Qty Description Adaptor HDD carrier MCP-220-00043-0N - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray Front Bezel CSE-PTFB-813LB (black) - Front Bezel Cover with Key Lock & Filter, Black, Beige, LCD options Front Tray CSE-PT40 (B) - Front USB and COM tray (Occupies Slim Floppy Drive Location) Heatsink / Retention N/A - Please refer to our Thermal Components Matrix LCD/OLED Solutions N/A - Please reference the LCD/OLED Display Solutions for details Mounting Rail MCP-290-00056-0N - 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis Peripheral Drive(s) DVM-PNSC-DVD-SBT3 - Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Peripheral Drive(s) MCP-220-81502-0N - Slim SATA DVD kit (include backplane, cable) Tray(s) MCP-290-00036-0B - Black DVD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) Motherboard (for CSE- 815TQC-R504WB2) X11SCW-F
