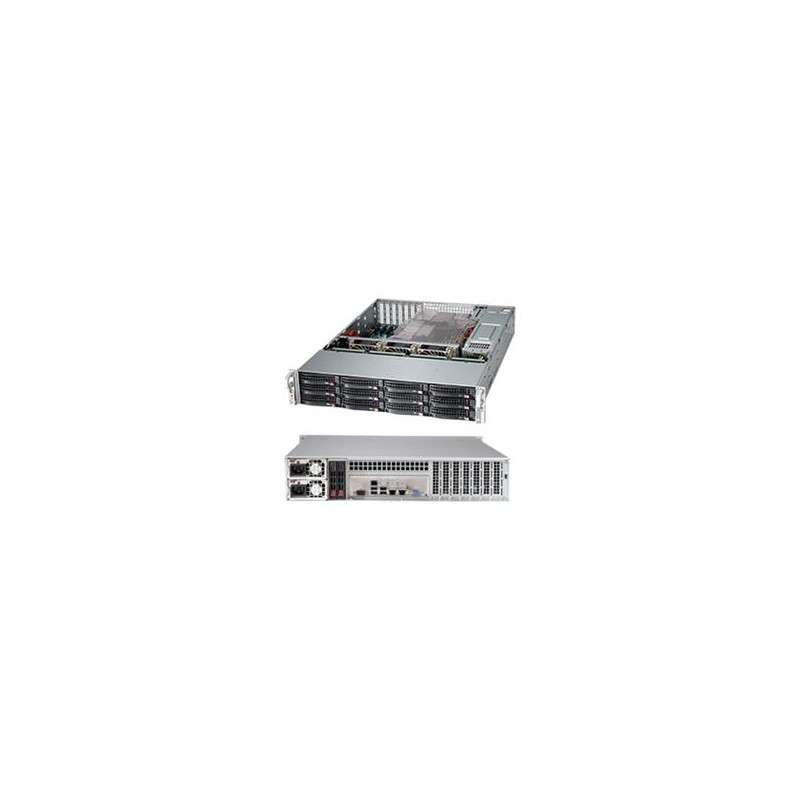

SUPERMICRO 2U chassis 12x 3,5" HS SAS SATA (3x SFF 8087) + volitelný 2x 2,5", 2x920W (80PLUS Gold)

Product SKUs CSE-826BA-R920LPB SuperChassis 826BA-R920LPB Form Factor 2U chassis - supports for maximum motherboard sizes: 13.68" x 13"; E-ATX 12" x 13", ATX 12" x 10". Supports up to 12" x 13" MB with rear 2.5" HDD option installed. Processor Support Dual and Single Intel® and AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) Gross Weight 55 lbs (24.95 kg) Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) Available Color Black Expansion Slots 7 low-profile expansion slot(s) Drive Bays 12 x 3.5" hot-swap SAS/SATA drive bay with SES2 and Mini-i-Pass (SFF 8087) connectivity Backplane 12-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 3 x 8cm high-performance PWM fan(s) Optional 5x 6cm hot-swap cooling fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 920W Redundant Platinum Super Quiet power supply W/PMbus Power Efficiency 94% Total Output Power and Input 920W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) -12V Max: NAA +12V Max: 75A / Min: 1A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A +12Vsb Max: NAA Power Distributor PDB-PT825-S8824 O/P: 12V/75A +5V Max: 30A +3.3V Max: 24A -12V Max: 0.6A Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 HD Backplane BPN-SAS-826A 1 12-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B Power Supply & Accessory PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF Optional Parts List Part Number Qty Description Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length HDD Kit MCP-220-82609-0N - Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis Fan Kit MCP-320-82603-0N - 6cm fan cooling module for 826B/216B (5X6cm fan) Tray(s) MCP-220-00043-0N - Black hotswap gen 4 3.5 to 2.5 HDD tray Motherboard (for CSE- 826BA-R920LPB) X9DR7-TF+ X9DRE-TF+ X9DR3-F X9DRi-F X9DR7-LN4F (-JBOD) X9DRE-LN4F X9DRH-7F X9DRH-7TF X9DRH-iF X9DRH-iTF X9DRD-7LN4F-JBOD X9DRD-EF X9DRD-7LN4F H8DG6 H8DG6-F H8DGi H8DGi-F X9DB3-TPF X9DB3-F X9DBi-TPF X9DBi-F X9DRH-iF-NV X10DRi-LN4+ X10DRi-T4+ X10DRi X10DRi-T X10DAi X10DAC X10DAX
