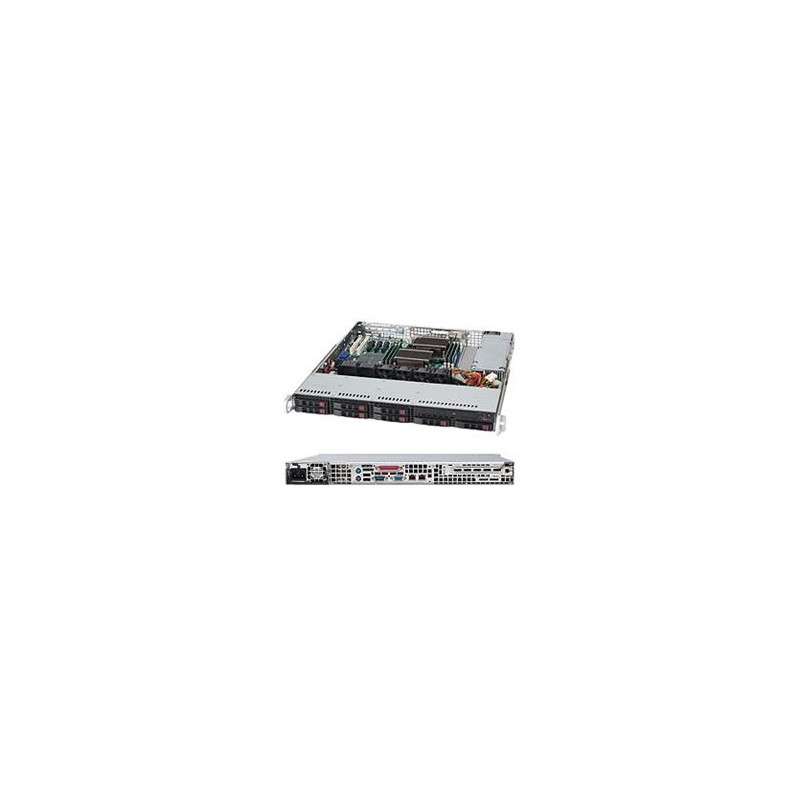

SUPERMICRO 1U chassis 8x 2,5" HS SAS SATA, 600W (80PLUS Platinum)

Product SKUs CSE-113MTQ-600CB SuperChassis 113MTQ-600CB Form Factor ##1U Rackmount Chassis, supports maximum motherboard sizes: 13.68" x 10.5" Processor Support ##Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.98" (507 mm) Gross Weight 29.5 lbs (13.38 kg) Packaging (W x H x L) 24" (610 mm) x 8.5" (216 mm) x 30" (762 mm) Available Color Black Expansion Slots 1 full height expansion slot(s) Drive Bays 8 x 2.5" hot-swap SAS/SATA drive bay SAS or enterprise SATA HDD only recommended Backplane 8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD Peripheral Drives Optional 1 x Slim DVD-ROM Drive Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 600W platinum efficiency multiple output power supply w/PMBus Power Efficiency 92% Total Output Power and Input 600W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 279.4 x 76 x 40.4 mm Output Type 24pin ATX -12V Max: 0.5A / Min: 0A +12V Max: 49A / Min: 0.5A (100Vac - 240Vac) +5V Max: 18A / Min: 0.5A +3.3V Max: 15A / Min: 0.5A +5Vsb Max: 3A / Min: 0A +12Vsb Max: NAA Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL
