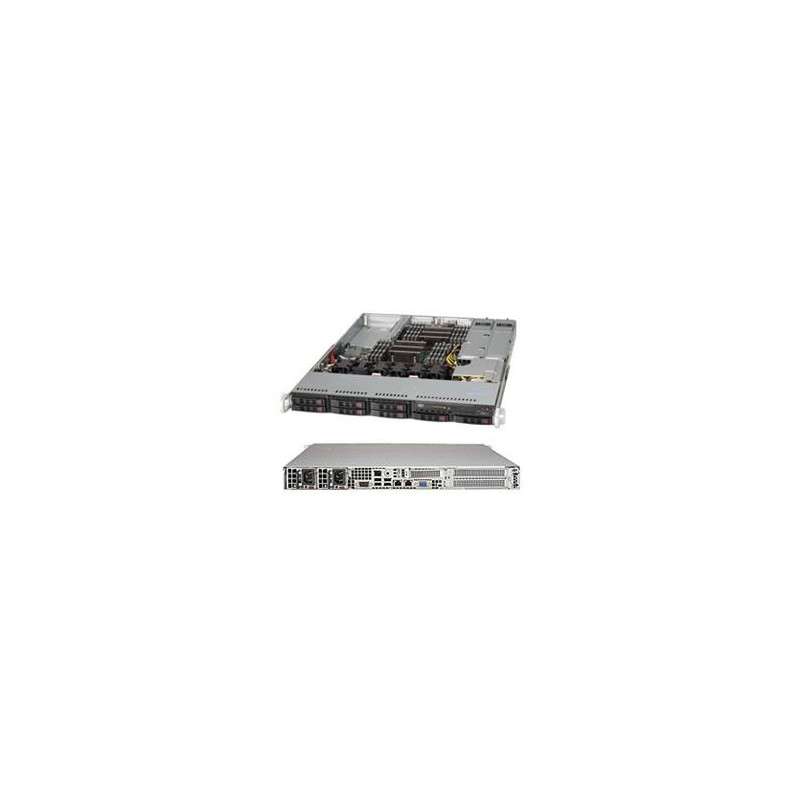

SUPERMICRO 1U chassis for X11, 8x 2,5" HS SAS SATA, 2x700 750W, WIO

Product SKUs CSE-113AC2-R706WB2 SuperChassis 113AC2-R706WB2 Form Factor ##1U rackmount chassis, support for motherboard size: 12" x 13" E-ATX ## Optimized for X11 WIO (W series) motherboards Processor Support ##Dual Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 23.5" (597 mm) Gross Weight 37 lbs (16.78 kg) Packaging (W x H x L) 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm) Available Color Black Expansion Slots 2 full height expansion slot(s) (Riser Card Required) 1 low-profile expansion slot(s) (Riser Card Required) Drive Bays 8 x 2.5" hot-swap SAS/SATA drive bay SAS or enterprise SATA HDD only recommended Backplane 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Peripheral Drives 1 x slim DVD-ROM drive bay Optional 1 x Slim DVD-ROM Drive Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fan for PCI card cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width Power Efficiency 94% Total Output Power and Input 700W with Input 100 - 140Vac 750W with Input 200 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 320 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) +12V Max: 58A / Min: 0.5A (100Vac - 140Vac) Max: 62A / Min: 0.5A (200Vac - 240Vac) +5Vsb Max: 3A / Min: 0A Power Distributor PDB-PT112-S2424 O/P: 12V/54 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
