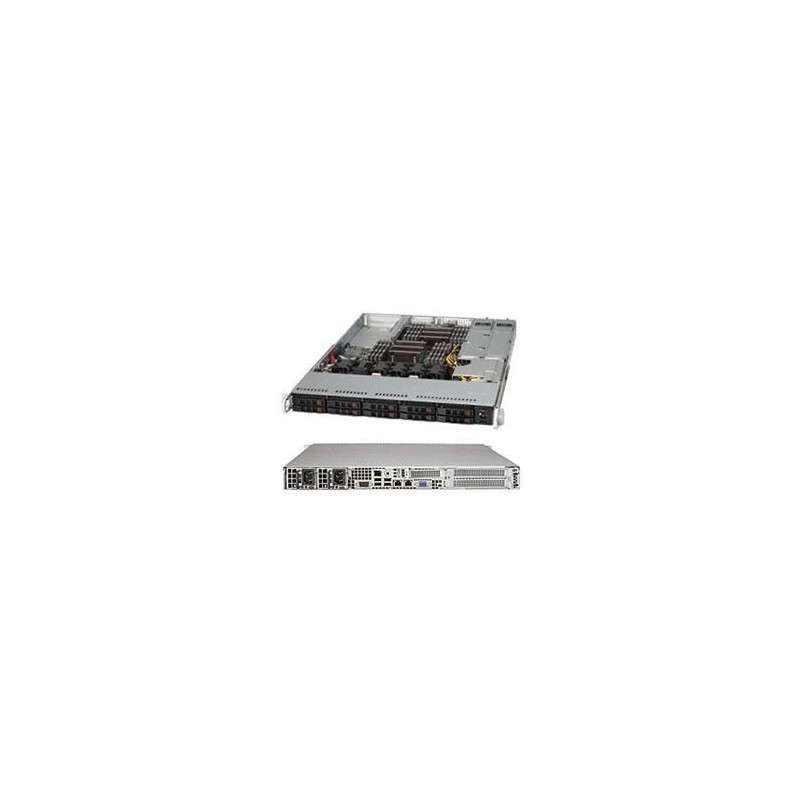

SUPERMICRO 1U chassis 10x 2,5" HS SAS3 SATA3 (8xSAS3 2xNVMe), 2x700 750W, WIO, X11

Product SKUs CSE-116AC2-R706WB2 SuperChassis 116AC2-R706WB2 Form Factor 1U chassis for motherboard support size of E-ATX 12"x13", 13.38"x 13.4". Optimized for X11 WIO (W series) motherboards Processor Support Dual, single Intel® / AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 23.5" (597 mm) Gross Weight 40 lbs (18.14 kg) Packaging (W x H x L) 24" (610 mm) x 8" (203 mm) x 32" (813 mm) Available Color Black Expansion Slots 2 full height expansion slot(s) 1 low-profile expansion slot(s) Drive Bays 10 x 2.5" hot-swap SAS/SATA drive bay Backplane 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Front Panel Buttons Power On/Off button Unit Identification (UID) button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fans for AOC cooling System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width Power Efficiency 94% Total Output Power and Input 700W with Input 100 - 140Vac 750W with Input 200 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 320 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) +12V Max: 58A / Min: 0.5A (100Vac - 140Vac) Max: 62A / Min: 0.5A (200Vac - 240Vac) +5Vsb Max: 3A / Min: 0A Power Distributor PDB-PT112-S2424 O/P: 12V/54 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-19002-0N 1 SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB HD Backplane BPN-SAS3-116A-N2 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Cable(S) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF Fan(s) FAN-0101L4 4 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 Front Panel FPB-FP116-DU3 1 Front control board with two USB 3.0 for SC116/SC119X Cooling Fan & Accessory MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan Cooling Fan & Accessory MCP-320-00028-0B 1 Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116 Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) Drive Tray(s) MCP-220-00047-0B 10 Black gen 3rd hot-swap 2.5inch HDD tray Power Distributor PDB-PT112-S2424 1 WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 Part(s) MCP-120-00029-0N 2 Blank FH L bracket without SCSI cutout for SC815,823 Part(s) MCP-120-00030-0N 1 Blank LP L-bracket (1 raw of capsule hole) Power Supply & Accessory MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover Power Supply & Accessory PWS-706P-1R 2 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF Mounting Rail(s) MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH Rear Window MCP-240-00098-0N 1 WIO rear window for SC113,SC116, SC815 Redundant PWS Optional Parts List Part Number Qty Description Rail MCP-290-00056-0N - Quick-release outer rail for square hole short-depth rack (19"~26.4") Motherboard (for CSE- 116AC2-R706WB2) X11DDW-L X11DDW-NT = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Servers (for CSE- 116AC2-R706WB2) 1029P-WTRT
