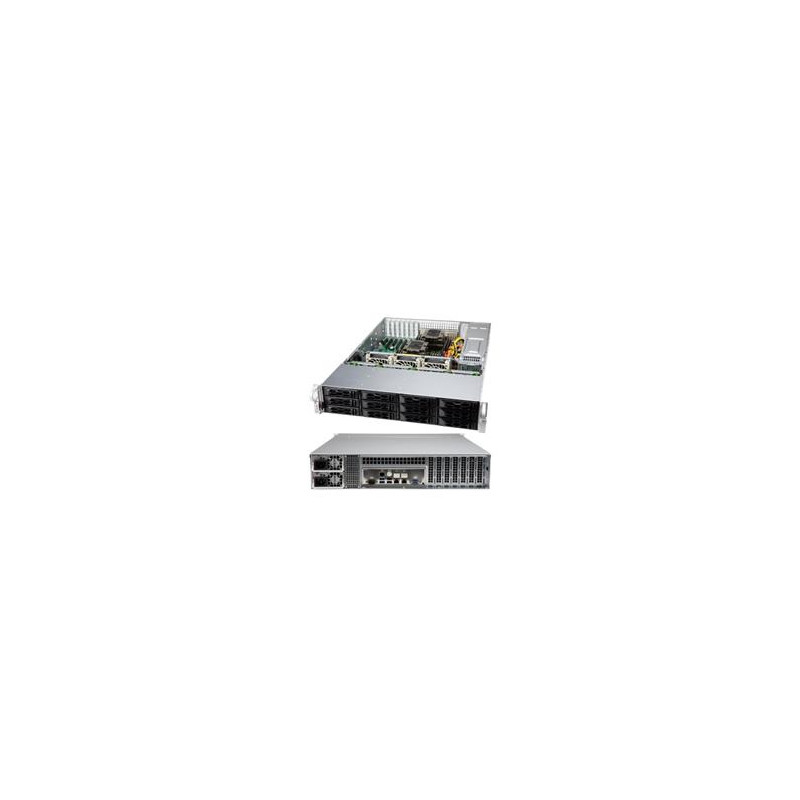

SUPERMICRO 2U chassis 12x 3,5" HS SAS3 SATA (Expander) 4x NVMe, 2x650W (80PLUS Platinum)

Product SKUs CSE-LA26E1C4-R609LP SuperChassis LA26E1C4-R609LP Form Factor 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed Processor Support Dual and Single Intel® and AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) Gross Weight 37 lbs (16.78 kg) Packaging (W x H x L) 24" (610 mm) x 9" (229 mm) x 24" (610 mm) Available Color Black Expansion Slots 7 low-profile expansion slot(s) Drive Bays 12 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3 Optional 2 x 2.5" hot-swap drive bay Backplane 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 3 x 8cm high-performance PWM fan(s) System Monitoring Optional Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 600W / 650W 1U Redundant Power Supply Power Efficiency 94% Total Output Power and Input 600W with Input 100 - 127Vac 650W with Input 200 - 240Vac 650W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 50A (100Vac - 127Vac) Max: 54.16A (200Vac - 240Vac) Max: 54.16A (200 - 240) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT826-L8824 O/P: 12V/75 +5V Max: 30 +3.3V Max: 24 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC Components ? Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-826EL1-N4 1 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis Drive Tray(s) MCP-220-00184-0B 12 Black gen-9 tool-less cost-effective 3.5" HDD tray (no dummy) Power Distributor PDB-PT826-L8824 1 2U cost effective PDB support up to 1200W.,RoHS Power Supply & Accessory PWS-609P-1R2 2 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac. Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF Optional Parts List Part Number Qty Description Rail MCP-290-00053-0N - Rail set, quick/quick, default for 2,3U 17.2"W Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B Cable CBL-0160L - NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) Air Shroud MCP-310-29001-0N - SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 Motherboard (for CSE- LA26E1C4-R609LP) X11SPH-nCTF X11SPH-nCTPF X11DPH-T X11DPH-I X11DPH-TQ X11SRL-F X11DPL-i
