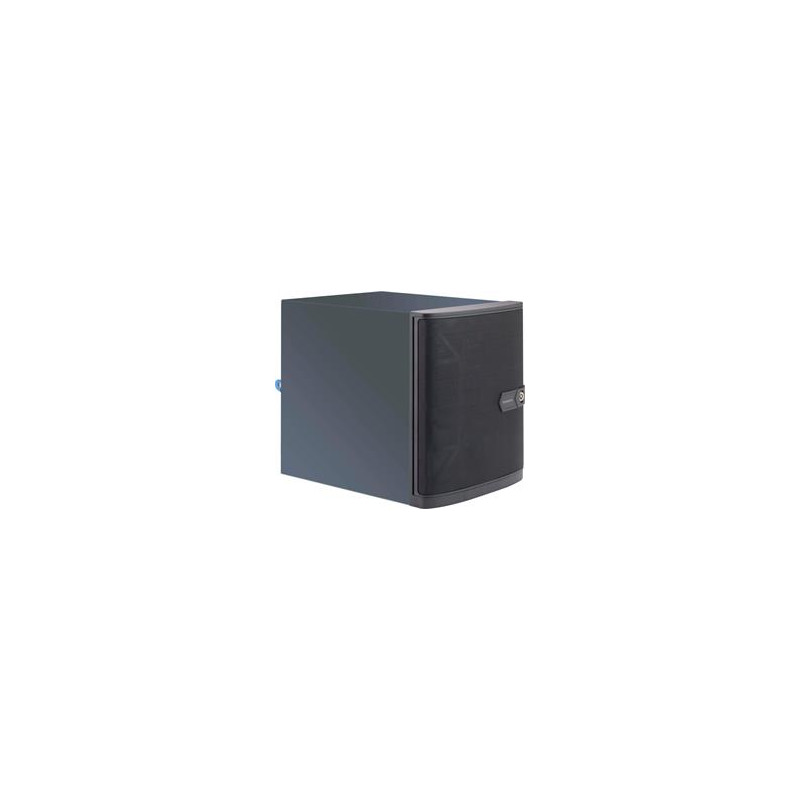

SUPERMICRO Mini-Tower 4x 3,5" HS SATA HDD + 2x Internal 2,5" SATA HDD,1x LP slot, 350W

Kompaktní mini-tower skříň s podporou mini-ITX a čtyřmi hot-swap SATA3/SAS2 šachtami pro HDD. Nabízí také dva interní SATA pro 2,5" disky, 350W efektivní zdroj a jeden slot pro nízkoprofilové rozšiřující karty. Vhodné pro domácí a kancelářské nasazení.
Skladem   1 ks
6 863 Kč bez DPH 5 672 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1184537
CSE-721TQ-350B2
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Key Features

  1. Compact Mini-Tower: D 11"x W 8.27"x H 9.45"
  2. Support wide range of Mini-ITX (6.75"x 6.75") motherboards
  3. 4 3.5" Hot-Swap SATA3/SAS2 drive bays, 2 internal 2.5" SATA drive bays, and 1 slim DVD-ROM drive bay
  4. 2 USB3.1 Gen1 ports(front), chassis intrusion switch, Kensington Lock supported
  5. 1 low-profile expansion slot for add-on cards
  6. 350W 80 PLUS Gold-certified High-efficiency power supply
Product SKUs
SuperChassis 721TQ-350B2
Form Factor
  • Compact Mini-Tower chassis support for motherboard size 6.75" x 6.75"
Dimensions
Height
  • 9.45" (240.03 mm)
Width
  • 8.27" (210.06 mm)
Depth
  • 11" (279.4 mm)
Gross Weight
  • 15 lbs (6.8 kg)
Net Weight
  • 13.5 lbs (6.12 kg)
Packaging (W x H x L)
  • 12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm)
Available Color
  • Black
Expansion Slots
  • 1x Low-profile expansion slot(s)
Drive Bays
  • 2x 2.5" fixed drive bay
  • 4x 3.5" hot-swap SAS/SATA drive bay
Backplane
  • 4x3.5" SAS2/SATA3 backplane w/SES-II
Peripheral Drives
  • 1x slim DVD-ROM drive bay
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 1 Network activity LEDs
  • Fan Fail/System Over Heat LED
Port
  • 2x USB 3.0 Port(s)
Systems Cooling
Fans
  • 1x 12cm rear exhaust fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Power Supply
350W 1U multi-output power supply
Total Output Power and Input
  • 350W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 150 x 81.5 x 40.5 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.3A / Min: 0.05A
+12V
  • Max: 28A / Min: 0.1A (100Vac - 240Vac)
+5V
  • Max: 15A / Min: 0.2A
+3.3V
  • Max: 10A / Min: 0.1A
+5Vsb
  • Max: 2A / Min: 0.05A
Certification
  • Gold Certified   Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • FCC class B
  • TUV/CB
  • UL/CB
