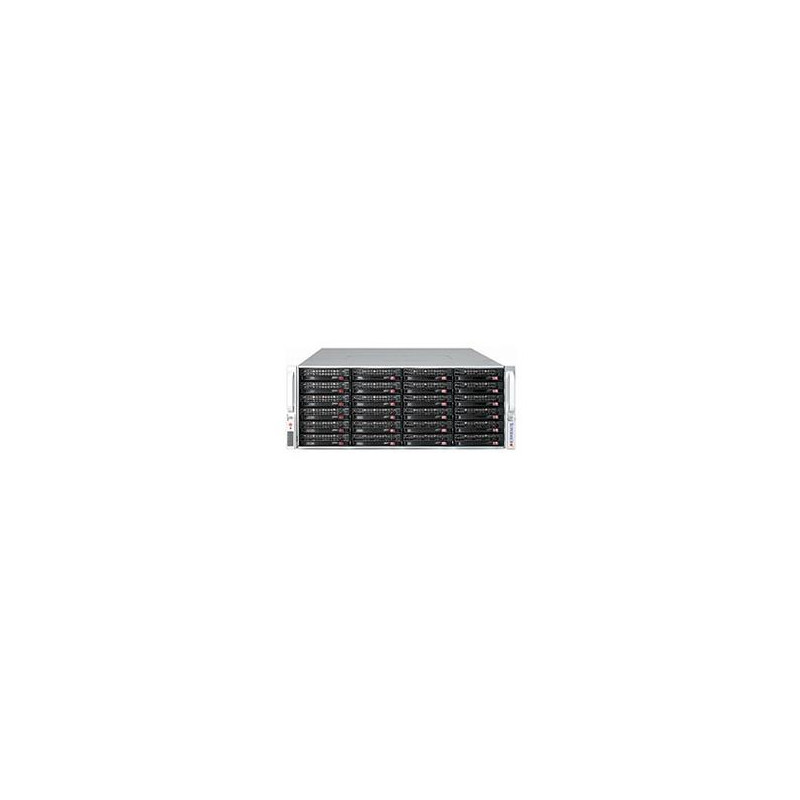

SUPERMICRO 4U chassis 36x 3,5" HS SAS SATA (24x Front + 12x Rear 4xNVMe opt) +2x 2.5"opt., 2x1200W (80PLUS Titanium)

4U šasi s podporou až 36x 3,5" hot-swap SAS/SATA disků, 2x 2,5" opt. a výkonným napájením 2x1200W (80PLUS Titanium). Výborná rozšiřitelnost a efektivní chlazení pro náročné aplikace.
Skladem   1 ks
65 626 Kč bez DPH 54 236 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1155089
CSE-847BE1C4-R1K23LPB
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Product SKUs
SuperChassis 847BE1C4-R1K23LPB
Form Factor
  • 4U chassis support for motherboard size 12" x 10", 13.68" x 13", 9.6" x 9.6"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.5" (699 mm)
Gross Weight
  • 118 lbs (53.52 kg)
Net Weight
  • 86 lbs (39 kg)
Packaging (W x H x L)
  • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color
  • Black
Expansion Slots
  • 7x Low-profile expansion slot(s)
Drive Bays
  • Optional 2x 2.5" hot-swap drive bay
  • 36x 3.5" hot-swap SAS/SATA drive bay with SES3
Backplane
  • 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
  • 24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
  • Optional 4x 2.5" internal fixed drive bay
  • Optional 2x 3.5" internal fixed drive bay
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 7x 80mm high-performance fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1200W with Input 200 - 240Vac
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 100A / Min: 0A (200Vdc - 240Vdc)
  • Max: 100A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT847-8824
  • O/P: 12V/135
  • +5V Max: 100A
  • +3.3V Max: 30A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
