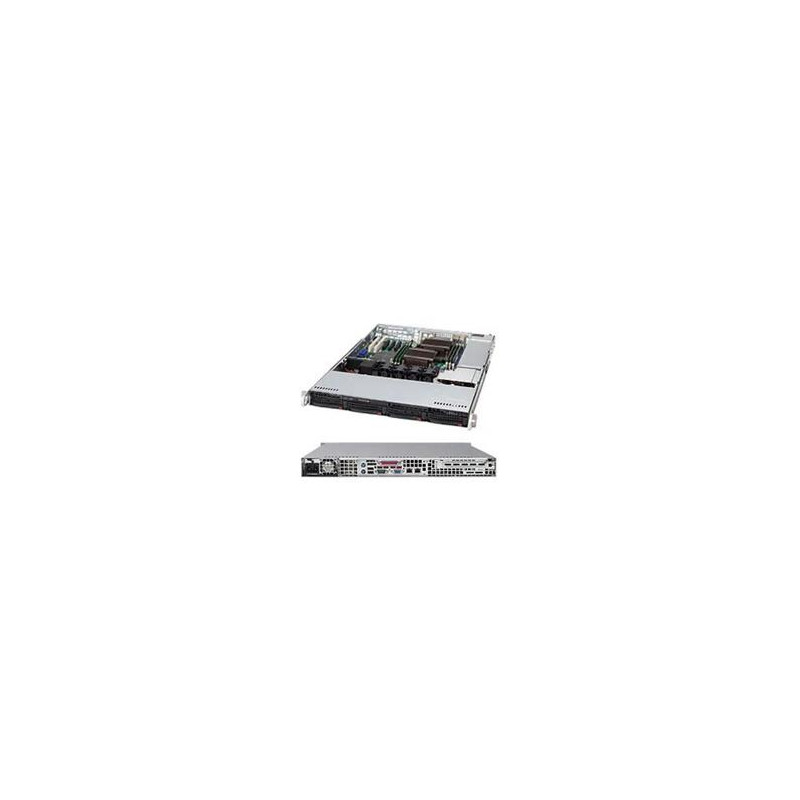

SUPERMICRO 1U chassis 4x 3,5" HS SAS SATA, 600W (80PLUS Platinum),

Product SKUs CSE-815TQ-600CB SuperChassis 815TQ-600CB Form Factor 1U chassis support for motherboard size 13.68" x 13" and ATX 12" x 10", E-ATX 12" x 13" Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 25.6" (650 mm) Gross Weight 36 lbs (16.33 kg) Packaging (W x H x L) 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm) Available Color Black Expansion Slots 1 full-height & full-length expansion slot(s) (Riser Card Required) Drive Bays 4 x 3.5" hot-swap SAS/SATA drive bay with SES2 SAS or enterprise SATA HDD only recommended Backplane 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD Peripheral Drives Optional 1 x Slim DVD-ROM Drive Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Ports 2x USB & DB9 COM port tray Systems Cooling Fans 4 x 4cm heavy duty counter-rotating with optimal fan(s) speed control Optional 2 x fan for PCI card cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 600W platinum efficiency multiple output power supply w/PMBus Power Efficiency 92% Total Output Power and Input 600W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 279.4 x 76 x 40.4 mm Output Type 24pin ATX -12V Max: 0.5A / Min: 0A +12V Max: 49A / Min: 0.5A (100Vac - 240Vac) +5V Max: 18A / Min: 0.5A +3.3V Max: 15A / Min: 0.5A +5Vsb Max: 3A / Min: 0A +12Vsb Max: NAA Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL
