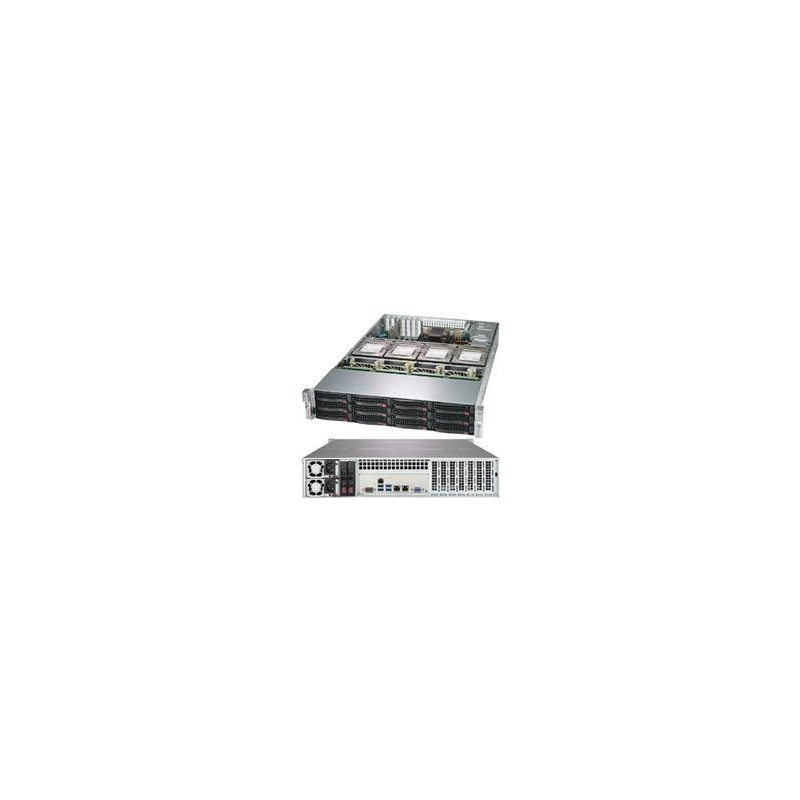

SUPERMICRO 2U chassis 12+4x 3,5" HS SAS3 SATA, 2x1000W (80PLUS Titaninum)

Product SKUs CSE-829HE1C4-R1K02LPB SuperChassis 829HE1C4-R1K02LPB Form Factor 2U chassis supports for maximum motherboard sizes - 13.68" x 13.4", E-ATX 12" x 13", ATX 12" x 10" motherboards Processor Support Dual and Single Intel® and AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 27.75" (705 mm) Net Weight 41.5 lbs (18.82 kg) Gross Weight 62 lbs (28.12 kg) Packaging (W x H x L) 25.9" (658 mm) x 10.8" (274 mm) x 39.3" (998 mm) Available Color Black Expansion Slots 7 low-profile expansion slot(s) Drive Bays 16 x 3.5" hot-swap SAS3/SATA drive bay Optional 2 x 2.5" hot-swap SAS/SATA drive bay Backplane 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD Fail LED Power Status LED Power Fail LED System Information LED Systems Cooling Fans 4 x 80x38mm hot-swap cooling fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 60°C (-40°F - 140°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 800/1000W Redundant Single Output Power Supply Titanium Level, CRPS 203mm length Power Efficiency 96% Total Output Power and Input 800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac 1000W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 203 x 73.5 x 40 mm Output Type Backplanes (gold finger) +12V Max: 66.7A (100Vac - 127Vac) Max: 83A (200Vac - 240Vac) Max: 83A (200 - 240) +12Vsb Max: 2.1A / Min: 0A Power Distributor PDB-PT829H-2824 O/P: 12V/120A +5V Max: 45A +3.3V Max: 24A -12V Max: 0.6A Certification Titanium Certified Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-82901-0B 1 Mylar 1U air shroud for SC829H Air Shroud MCP-310-82928-0B 1 Mylar 2U air shroud for SC829H rear CPU HD Backplane BPN-SAS3-826EL1-N4 1 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH HD Backplane BPN-SAS3-829HA-A4 1 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Cable(S) CBL-0217L 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF Fan(s) FAN-0118L4 4 80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot Front Panel MCP-280-00018-0N 1 SC826 front control board adapter Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5 Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray Drive Tray(s) MCP-220-82902-0N 1 Middle tray plate for SC829H Drive Tray(s) MCP-220-82903-0N 4 Internal mid tray with handle for SC829H Power Distributor PDB-PT829H-2824 1 2U standard output with 24Pin PDB support up to Power Supply & Accessory PWS-1K02A-1R 2 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH Mounting Rail(s) MCP-290-00053-0N-01 1 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W Optional Parts List Part Number Qty Description Adaptor Bracket MCP-120-82503-0N - Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH HDD Tray Converter MCP-220-00043-0N - Black hot-swap gen 4 3.5 to 2.5 HDD tray HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length Tray(s) MCP-220-00138-0B - Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab Cable CBL-SAST-0972 - OCuLink controller to MiniSAS HD backplane V.91,INT,PCIe NVMe SSD, 70CM,34AWG Cable CBL-SAST-0929 - OCuLink controller to MiniSAS HD backplane V.91,INT,PCIe NVMe SSD, 57CM,34AWG Motherboard (for CSE- 829HE1C4-R1K02LPB) X10DRH-CT H11SSL-NC H11SSL-C H11SSL-i
