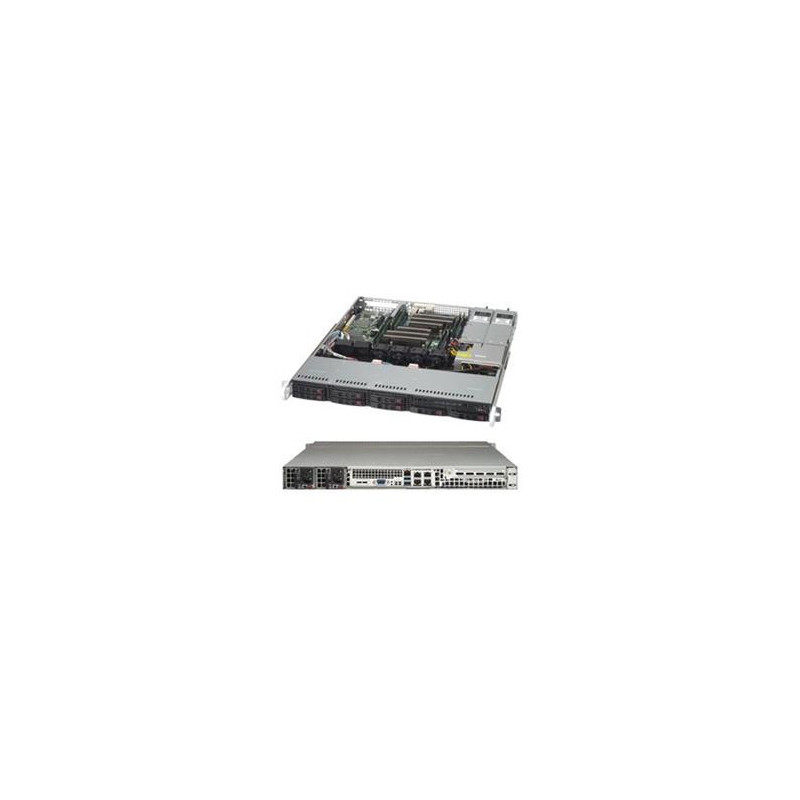

SUPERMICRO 1U chassis 8x 2,5" HS SAS3 SATA (2x NVMe), 2x600W (80PLUS Gold)

Product SKUs CSE-113MFAC2-R606CB SuperChassis 113MFAC2-R606CB Form Factor 1U Chassis, support motherboard size: ATX 12" x 10" Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.98" (507 mm) Gross Weight 30 lbs (13.61 kg) Packaging (W x H x L) 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm) Available Color Black Expansion Slots 1 full height expansion slot(s) Drive Bays 8 x 2.5" hot-swap SAS/SATA drive bay Backplane 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Peripheral Drives Optional 1 x slim DVD-ROM drive bay Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40 Power Efficiency 94% Total Output Power and Input 600W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 220 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) -12V Max: NAA +12V Max: 50A / Min: 0.5A (100Vac - 240Vac) +5Vsb Max: 3A / Min: 0A +12Vsb Max: NAA Power Distributor PDB-PT813M-2424 O/P: 120/62 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Cable(S) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF Cable(S) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH CD-ROM & Accessory MCP-290-00036-0B 1 Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH Front Panel FPB-FP112 1 Front control board for SC113,113M (U/C share Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M) Drive Tray(s) MCP-220-00047-0B 8 Black gen 3rd hot-swap 2.5inch HDD tray Power Distributor PDB-PT813M-2424 1 Power Distributor With 24pin for SC813M Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Part(s) MCP-290-00037-0N 1 SC113 Control panel module (w/o DVD) Power Supply & Accessory MCP-250-00016-0V 1 Redundant Silver plastic PDB cover for SC813M,113M Power Supply & Accessory PWS-606P-1R 2 1U 600W Redundant Short Depth High Efficiency Power Supply Mounting Rail(s) MCP-290-00102-0N 1 Outer rail, quick-release type, 25.6" to 33.05" Mounting Rail(s) MCP-290-00107-0N 1 Inner rail, front, short, screw type Mounting Rail(s) MCP-290-00110-0N 1 Inner rail, extension (quick) for 1U 17.2 Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS Optional Parts List Part Number Qty Description Air Shroud MCP-310-19007-0N - SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB Air Shroud MCP-310-19009-0N - SC811, SC111, SC813M, SC113M, SC512F-280/350/410/520/600, SC513L-410/420, DP X9DBL ,X9 Mylar Air Shroud, 12"x10" MB Air Shroud MCP-310-19015-0N - SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12"x10" MB,RoHS/REACH 2.5" HDD Bracket MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 Tray(s) MCP-220-00087-0B - Black USB tray for slim DVD bay Motherboard (for CSE- 113MFAC2-R606CB) X10SRH-CF X10SRH-CLN4F X10DRL-CT X10DRL-iT X10DRL-C X11SSH-F X11SSH-LN4F X11SSi-LN4F X11SSL-F X11SSL-CF X11SSL-nF X11SSL X11SSM-F X11SSM X11SSH-CTF X11SSH-TF X10SRM-TF X10SRM-F X11SSH-GTF-1585 X11SSH-GF-1585 X11SSH-GTF-1585L X11SSH-GF-1585L = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Servers (for CSE- 113MFAC2-R606CB) 1028R-MCTR
