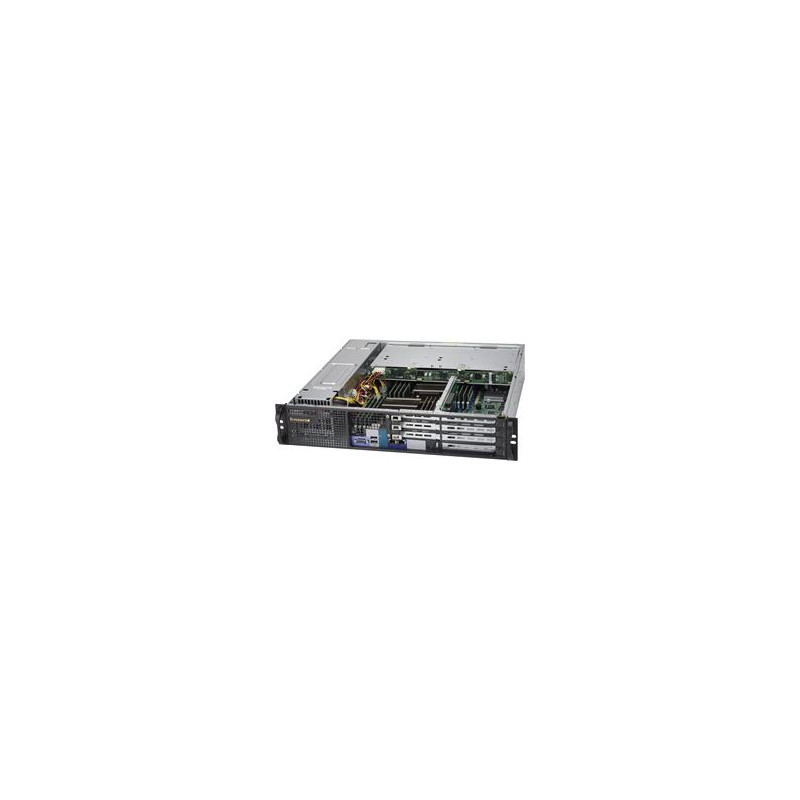

SUPERMICRO 2U short depth front IO chassis 3x 3,5" HS SAS SATA, DVD, 2x800W (titanium), WIO

Product SKUs CSE-823MTQC-R802WB SuperChassis 823MTQC-R802WB Form Factor 2U chassis - supports for maximum motherboard sizes: SMC Proprietary WIO, 12.8" x 13.4" motherboards Processor Support Dual and Single Intel® and AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 17.7" (450 mm) Gross Weight 42 lbs (19.05 kg) Packaging (W x H x L) 23.4" (594 mm) x 9.9" (251 mm) x 32.5" (826 mm) Available Color Black Expansion Slots 4 full height expansion slot(s) (Riser Card Required) 3 low-profile expansion slot(s) (Riser Card Required) Drive Bays 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO Backplane 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Power Fail LED System Information LED Systems Cooling Fans 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium Power Efficiency 96% Total Output Power and Input 800W with Input 100 - 240Vac 800W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 66A (100Vac - 240Vac) Max: 66A (200 - 240) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT823M-8824 O/P: 12V/75A +5V Max: 30A +3.3V Max: 24A -12V Max: 0.6A Certification Titanium Certified Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-29019-0N 1 SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB HD Backplane BPN-SAS3-825MTQ-P 1 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Fan(s) FAN-0157L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836 Cooling Fan & Accessory MCP-320-82301-0B 1 Fan Tray for Six 4056 Fans Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) Drive Tray(s) MCP-220-00075-0B 3 Black gen 5.5 hot-swap 3.5" HDD tray Drive Tray(s) MCP-220-82301-0N 1 HDD cage housing 3 trays for SC823M Power Distributor PDB-PT823M-8824 1 SC823M 24PIN REDUNDANT POWER DISTRIBUTOR Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Rear Window MCP-240-82304-0N 1 SC823M rear window Optional Parts List Part Number Qty Description Rail MCP-290-00058-0N 1 Ball bearing quick release rail for shor-depth rack (19"~26.6") Cable CBL-0044L 3 SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat Cable CBL-0157L 1 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF Cable CBL-SAST-0948 1 MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG Chassis parts MCP-290-82302-0N 1 Dummy HDD cover for SC823M Drive Trays MCP-220-82302-0N 1 2.5" or 3.5" fixed HDD tray for SC823M Motherboard (for CSE- 823MTQC-R802WB) X11DDW-L X11DDW-NT
