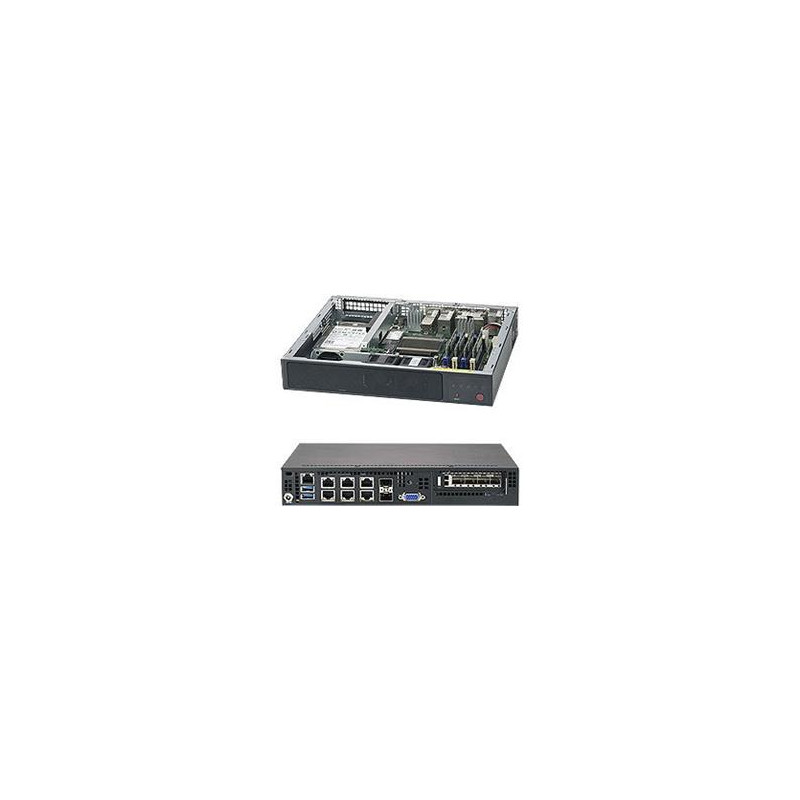

SUPERMICRO Micro 1U mini ITX chassis 2x 2,5" int. HDD, bez zdroje

Product SKUs CSE-E102 SuperChassis E102 Form Factor 3.5" SBC Processor Support Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 7.6" (193 mm) Depth 5.2" (132 mm) Gross Weight N/A Packaging (W x H x L) 15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm) Available Color Black Drive Bays Optional 1 x 2.5" Internal Drive Front Panel Buttons Power On/Off button LEDs HDD activity LED Power LED Systems Cooling Fans 1 x 4cm high performance PWM fan(s) Operating Environment (System) Operating Temperature Range 0°C - 40°C (32°F - 104°F) Non-Operating Temperature Range -20°C - 60°C (-4°F ? 140°F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non-Operating Relative Humidity Range 10% - 95% (non-condensing) Components ? Standard Parts List Part Number Qty Description Fan(s) FAN-0170L4 1 40x40x10 mm, 7K RPM, SC101S Chassis Fan Part(s) MCP-160-10201-0B 1 CSE-E102 Default Front Panel mylar without any opening Optional Parts List Part Number Qty Description Cable CBL-CUSB-1045 - SERIAL, 2x DB9M TO 2X10F/P2.00,INT TO EXT,FLAT, 12CM, 28AWG Cable CBL-PWEX-0982 - PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG Cable CBL-SAST-0881 - SATA,INT,6G,FLAT,ST-RA,25CM,30AWG,BLK,No Latch,RoHS Chassis parts MCP-160-10202-0B - CSE-E102 Optional FP mylar with 4x Comport opening only Chassis parts MCP-160-10203-0B - CSE-E102 Optional FP mylar with 4x comport and Audio port Chassis parts MCP-160-10204-0B - CSE-E102 Optional FP mylar with Audio port only Power Adapter MCP-250-10117-0N - 60W DC power adapter with US power cord 18AWG 6ft Power Adapter MCP-250-10124-0N - AC to DC 40W lockable power adapter IO shield MCP-260-10202-0B - CSE-E102 I/O shield for X11SSN IO shield MCP-260-10201-0B - CSE-E102 I/O shield for A2SAN and X11SAN Chassis parts MCP-290-10113-0B - wall mount/VESA mount Motherboard (for CSE- E102) X11SAN A2SAN-H A2SAN-L X11SSN-L
