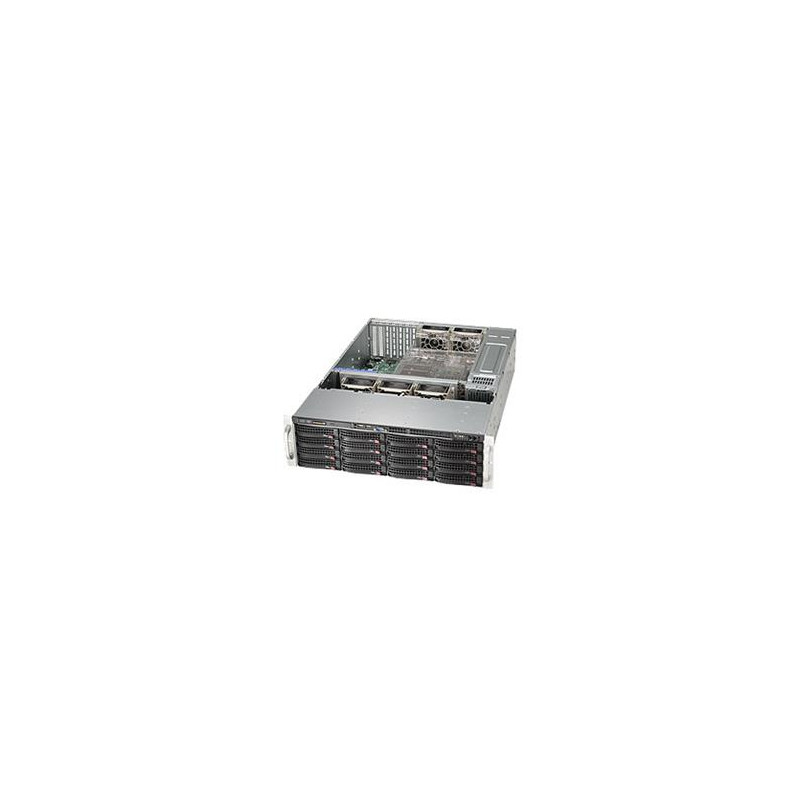

SUPERMICRO SuperChassis CSE-836BE1C-R1K03JBOD 3U, 16x3.5" hot-swap, 2x1000W

Product SKUs CSE-836BE1C-R1K03JBOD SuperChassis 836BE1C-R1K03JBOD Form Factor 3U JBOD storage chassis Dimensions Height 5.2" (132 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) Net Weight 36 lbs (16.33 kg) Gross Weight 75 lbs (34.02 kg) Packaging (W x H x L) 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm) Available Color Black Drive Bays 16 x 3.5" hot-swap HDD bays for JBOD solution Qualified SAS Controllers AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller Backplane 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 1 Network Activity LEDs Systems Cooling Fans 3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud System Monitoring IPMI Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus Power Efficiency 96% Total Output Power and Input 800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac 1000W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 66.7A (100Vac - 127Vac) Max: 83A (200Vac - 240Vac) Max: 83A (200 - 240) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT826-8824 O/P: 12V/135 +5V Max: 40 +3.3V Max: 24 -12V Max: 0.6 Certification Titanium Certified Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB HD Backplane BPN-SAS3-836EL1 1 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(S) CBL-0088L 1 10.5" 4PIN FAN POWER CORD FOR 743X-645,PBF Cable(S) CBL-0296L 3 9" 4 PIN FAN PWS EXTENSION CORD, PBF Cable(S) CBL-CDAT-0601 1 4 Pin to 4 Pin I2C cable, 50cm, 26AWG Cable(S) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD Cable(S) CBL-SAST-0532 4 Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836 Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836 Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B Part(s) MCP-260-00011-0N 1 I/O shield without any opening Part(s) MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835 Power Supply & Accessory PWS-1K03A-1R 2 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N) Optional Parts List Part Number Qty Description Cable CBL-SAST-0573 - External mini SAS HD to external mini SAS HD cable 28AWG (1M) Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS Cable CBL-SAST-0677 - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH Drive Trays MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
