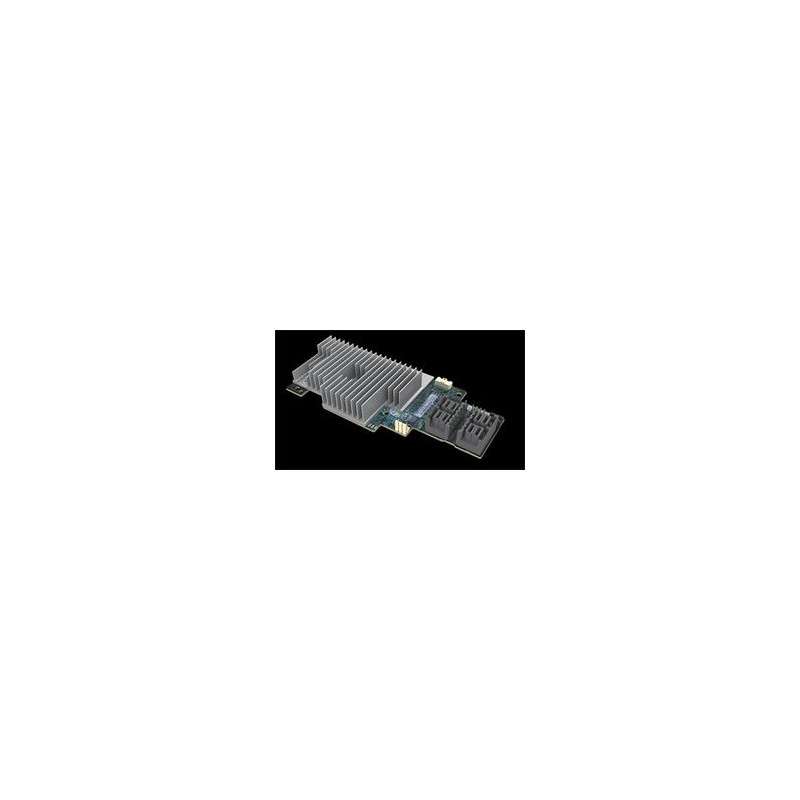

INTEL RAID Module, SIOM, 12Gb, LSI3316 ROC, 16P Internal SAS, 2GB, RAID 0, 1, 10, 5, 50, 6, 60

12Gb/s (SAS 3.0) 16 internal port SAS/SATA mezzanine card built with PCIe 3.0 dual core RAID-On-Chip (ROC), RAID levels 0/1/10/5/50/6/60, and support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys. Board Form Factor Storage Connector Module Supported Devices SAS/SATA Supported Operating Systems Windows, Linux, Solaris, VMware Compatible Cache Backup Options AXXRMFBU6 RAID Level Supported 0, 1, 10, 5, 50, 6, 60 JBOD Mode Yes # of Ports Internal 16 # of Ports External 0 # of Devices Supported 240 Embedded Memory 2GB PCIe Host Interface PCIe x8 Gen3 IO Processor Model Avago 3316 Keying SIOM Connector Connector Orientation Vertical Extended Warranty Available for Purchase (Select Countries) Yes Additional Features Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys. Included Items (1) Intel® Integrated RAID Module RMS3AC160, (4) standoffs, and (4) standoff locking pins
