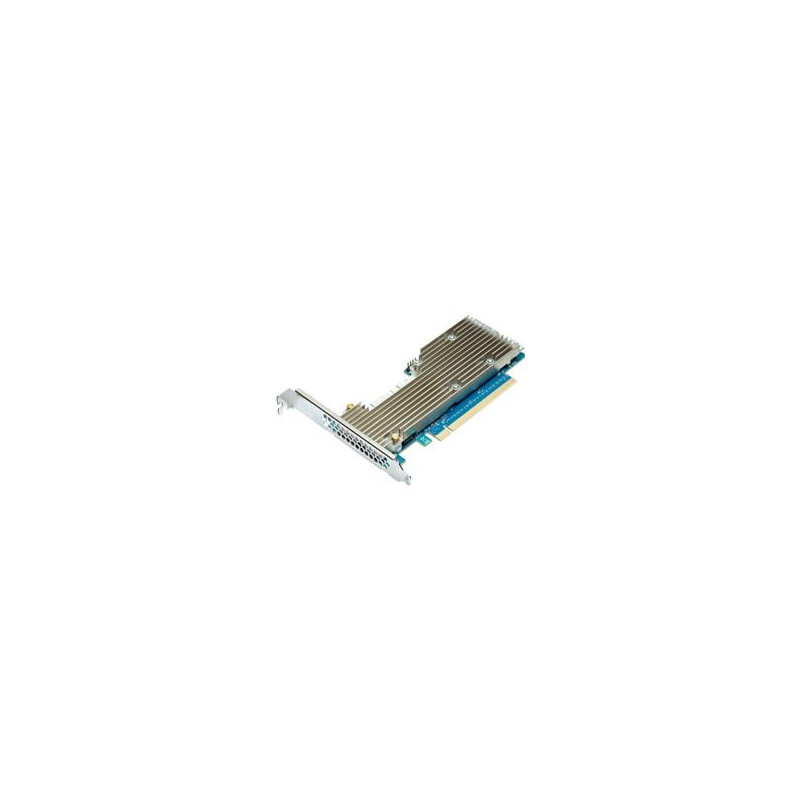

Broadcom P411W-32P NVMe Switch Adapter, 4x SFF-8654 x8, PCIe 4.0 x16, LP faktor

Osmi portový PCI-Express G4 switch ve formě interní přídavné karty do PCI-Express ×16 G4 slotu. Každý z portů lze využívat jako 1× PCI-E4g4 nebo 2× PCI-E2g4 nebo 4× PCI-E1g4 pro připojení NVMe SSD. - PEX88048 - PCI-Express ×16 g4 - Osm interních konektorů (SFF-8654), každý s PCI-Express ×4 g4 - SGL balení obsahuje: Vlastní kartu, QuickInstalationGuide, LP bracket, Driver&Manual CD The P411W-32P adapter leverages Broadcom’s world-class board design, PEX88048 PCIe Gen 4.0 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods. Similar to Broadcom MegaRAID adapters and HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features. The P411W-32P adapter supports x16 PCIe Gen 4.0 Host connection and support for up to 8 x4, 16 x2, or 32 x1 NVMe SSD connect. The adapter’s low profile form factor allows the most flexibility for usage in everything from 1U and larger rack servers to towers. Specification Value Lifecycle Active Connectors Four x8 SFF-8654 Host Bus Type PCI Express® 4.0 Host Interface x16 PCIe 4 MTBF > 5,000,000 hours at 40° C Operating Temperature°C 0°C to 55°C Operating Voltage (V) +12 +/-8% Ordering Part # 05-50054-00 PCIe Switch PEX88048 Physical Dimensions Low profile 6.127” x 2.712” Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE Storage Interface PCIe (NVMe): x4, x2, x1 Typical Power 21W Warranty 3 years, advanced replacement option What's in the box P411W-32P Adapter, Low Profile Bracket, FH (attached)
