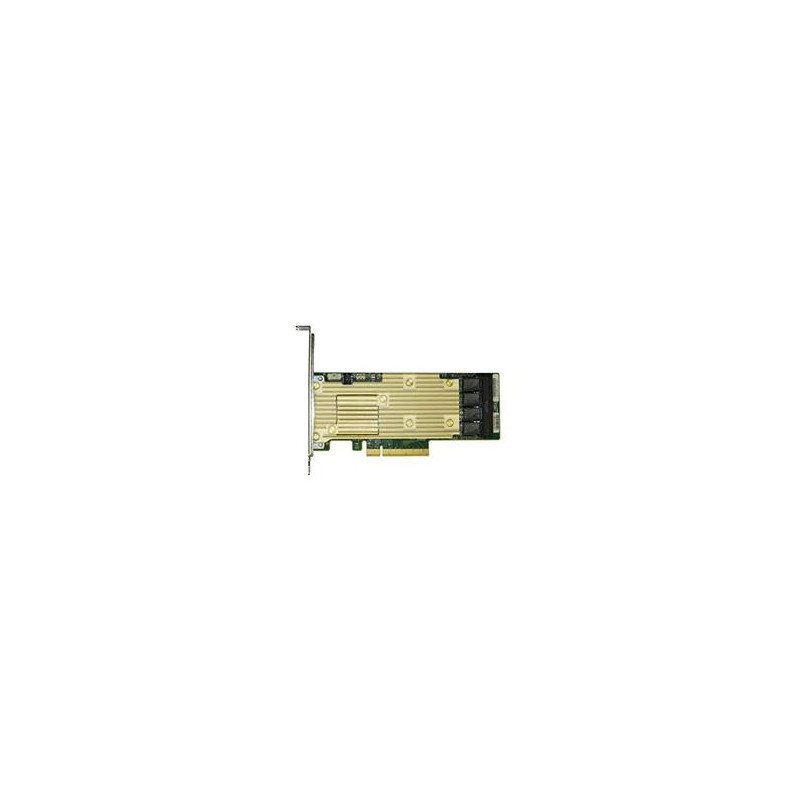

Intel® RAID tri-mode Adapter RSP3TD160F 16P intenal, 4GB, R0,1,10,5,50,6,60, SAS3516, PCIe3.0 x8

Tri-mode PCIe RAID adaptér nabízí 16 interních portů a podporuje NVMe, SAS a SATA. S 4GB paměti umožňuje různé RAID úrovně, včetně 0, 1, 5, a 10, a je kompatibilní s Windows, Linux a VMWare.
Na objednávku
25 465 Kč bez DPH 21 045 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
INTEL
1183839
RSP3TD160F
24 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Essentials

Product Collection
Intel® RAID Controllers
Code Name
Products formerly Trinity Dunes
Status
Launched
Launch Date
Q3'17
Expected Discontinuance
2025
Target Market
Full-featured
Board Form Factor
Low-Profile MD2 PCIe AIC
Supported Devices
PCIe/SAS/SATA
Supported Operating Systems
Windows, Linux, VMWare
Compatible Cache Backup Options
AXXRMFBU7
RAID Level Supported
0, 1, 10, 5, 50, 6, 60
JBOD Mode
Yes
# of Ports Internal
16
# of Ports External
0
# of Devices Supported
240
Embedded Memory
4GB
PCIe Host Interface
PCIe x8 Gen3
IO Processor Model
SAS3516
Keying
PCIe x8 Connector
Connector Orientation
Vertical
Extended Warranty Available for Purchase (Select Countries)
Yes
Additional Extended Warranty Details
Intel® RAID Extended Warranty
Additional Features
Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
Included Items
(1) Intel® RAID Adapter, (1) low-profile mounting bracket

Supplemental Information

Description
Tri-mode PCIe(NVMe)/SAS/SATA Full-Featured RAID Adapter, 16 internal ports
