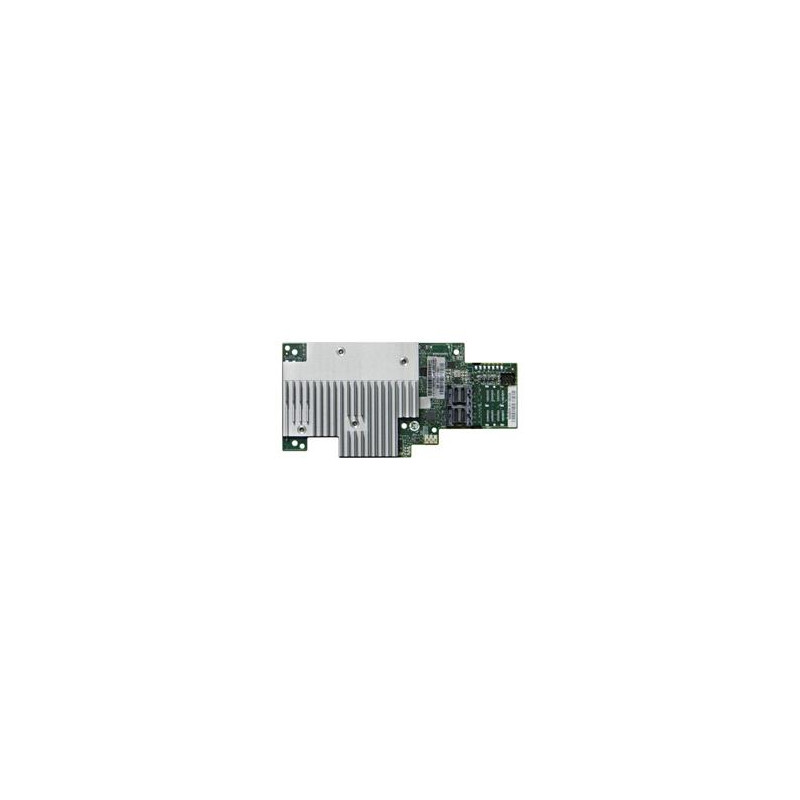

INTEL RAID Module SIOM Connector, SAS3408 tri-mode, 8P (SAS SATA) 2p (NVMe), RAID 0 1 10 5 50
Mezzanine modul s tri-mode rozhraním PCIe/NVMe/SAS/SATA pro entry-level RAID. Nabízí 8 interních portů a podporuje úrovně RAID 0, 1, 10, 5 a 50. Kompatibilní s Windows, Linux a VMWare.
9 022 Kč bez DPH 7 456 Kč
Popis produktu
Essentials
- Product CollectionIntel® Integrated RAID (Modules/System Boards)
- Code NameProducts formerly Hidden Dunes
- StatusLaunched
- Launch DateQ3'17
- Expected Discontinuance2025
- Target MarketEntry
- Board Form FactorMezzanine Module
- Supported DevicesPCIe/SAS/SATA
- Supported Operating SystemsWindows, Linux, VMWare
- RAID Level Supported0, 1, 10, 5, 50
- JBOD ModeYes
- # of Ports Internal8
- # of Ports External0
- # of Devices Supported63
- PCIe Host InterfacePCIe x8 Gen3
- IO Processor ModelSAS3408
- KeyingSIOM Connector
- Connector OrientationVertical
- Extended Warranty Available for Purchase (Select Countries)Yes
- Additional Extended Warranty DetailsIntel® RAID Extended Warranty
- Included Items(1) Intel® RAID Module, (4) standoffs, and (4) standoff locking pins
Supplemental Information
- DescriptionTri-mode PCIe (NVMe)/SAS/SATA Entry-Level RAID Mezzanine Module, 8 internal ports
Mezzanine modul s tri-mode rozhraním PCIe/NVMe/SAS/SATA pro entry-level RAID. Nabízí 8 interních portů a podporuje úrovně RAID 0, 1, 10, 5 a 50. Kompatibilní s Windows, Linux a VMWare.
