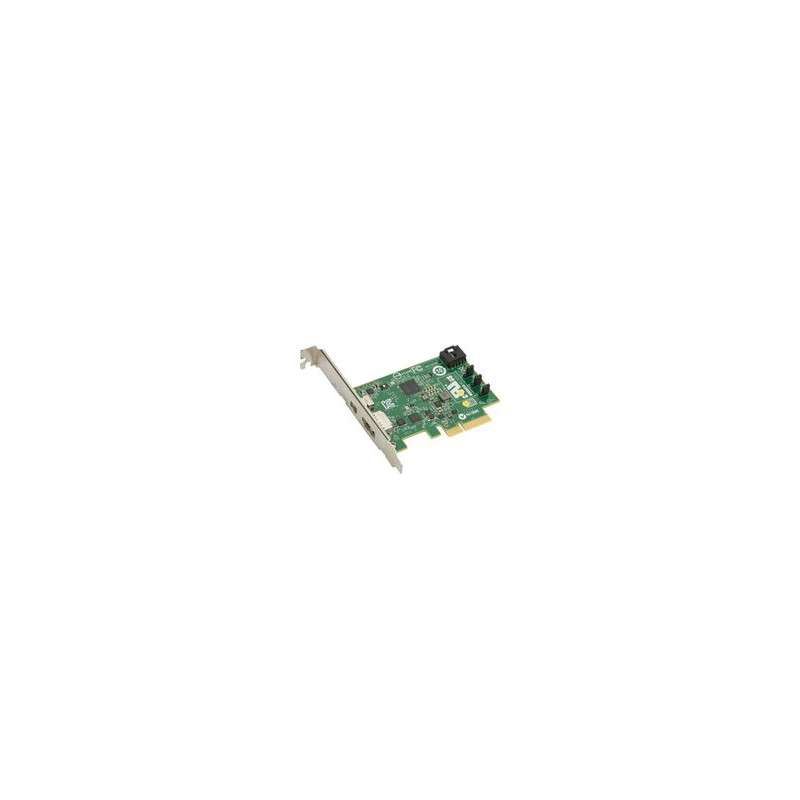

SUPERMICRO Thunderbolt 2 Add-on card,W Display and GPIO cable,HF,RoHS REACH

AOC-TBT-DSL5320 is the qualified Thunderbolt AOC that will work with Supermicro motherboards Plug Thunderbolt add-on card into PCIe 2.0 x4 slot from PCH Connect one end of GPIO cable to GPIO header JTBT1 on the motherboard and other end to the GPIO header on AOC-TBT-DSL5320 Connect GPU card display output into the DisplayPort input connector on the Thunderbolt card Connect the Thunderbolt port on the AOC to the Thunderbolt device User may daisy chain up to 6 devices and a legacy monitor (legacy monitor must be at the end of the daisy chain); user can daisy chain one additional monitor if legacy monitor is DP 1.2; TBT devices can be connected after TBT monitor in the daisy chain Specifications Form Factor Low-profile, single slot (3.71" length x 2.99" height) Chipset DSL5320 Thunderbolt 2 controller (Falcon Ridge) Thunderbolt Connector 1 Displayport Connector 1 Displayport Revision 1.2 PCIe Connection PCIe 2.0 x4 from PCH PCIe slot GPIO Connector Needs GPIO cable to TBT GPIO header on MB (Supported on X10DAi/C/X, X10DAL and X10DRG-Q) Thunderbolt Bandwidth 20 Gbps TBT AIC Power Consumption 4.1W max
