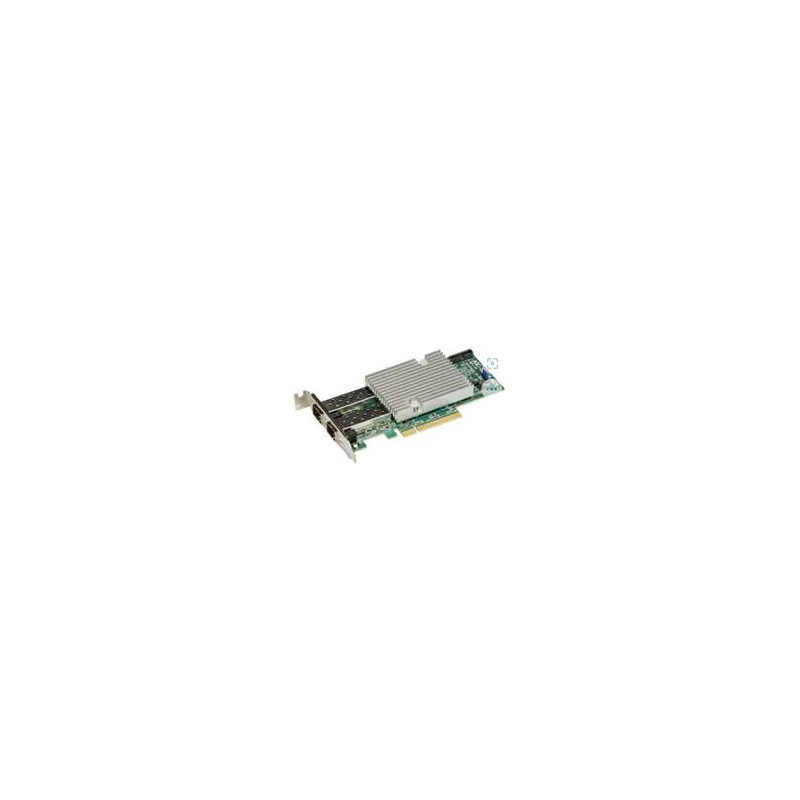

SUPERMICRO AOC-S25G6-M2S Dual SFP28 25Gb s,PCIe 4x

Skladem   4 ks
7 756 Kč bez DPH 6 410 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2373750
AOC-S25G6-M2S-O
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Add-on Card

Standard Low-Profile Dual-port 25GbE adapter
The Supermicro AOC-S25G6-M2S is a PCIe Gen 4 Ethernet solution based on the low–power-consumption NVIDIA ConnectX-6 Lx controller with features such as VXLAN, NVGRE and RDMA. It is a feature-rich adapter that provides unparalleled performance and functionality to your cloud service, telecommunication and enterprise data centers. With integrated asset management features in Supermicro systems, it is the most versatile 25GbE solution in the market.

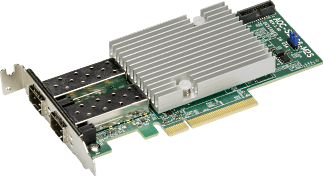

AOC-S25G6-M2S

To order, contact your distributor. This product is only available through Supermicro.

Key Features

  • NVIDIA ConnectX-6 Lx 25GbE controller
  • Support for 25GbE and 10GbE Speed
  • Dual SFP28 connectors
  • RDMA over Converged Ethernet
  • VXLAN, NVGRE and Geneve
  • Asset Management Features with thermal sensor
  • Network Controller Sideband Interface (NC-SI) for Remote Management
Downloads

User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Mellanox folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]



Specifications

  • General:
    • NVIDIA ConnectX-6 Lx 25GbE controller
    • Dual SFP28 ports


  • Storage Accelerations:
    • NVMe over Fabric offloads for target
    • Storage protocols: iSER, NFSoRDMA,
    • SMB Direct, NVMe-oF, and more


  • RDMA over Converged Ethernet
    • RoCE v1/v2
    • Zero-Touch RoCE: no ECN, no PFC
    • RoCE over overlay networks
    • IPsec over RoCE
    • Selective repeat
    • GPUDirect®
    • Dynamically Connected Transport (DCT)
    • Burst buffer offload


  • Management and Control:
    • Network Controller Sideband Interface (NC-SI)
    • NC-SI, MCTP over SMBus and MCTP over PCIe - Baseboard Management Controller interface
    • PLDM for Monitor and Control DSP0248
    • PLDM for Firmware Update DSP026


  • Remote Boot:
    • Remote boot over Ethernet
    • Remote boot over iSCSI
    • UEFI support for x86 and Arm servers
    • PXE boot


  • Standards:
    • IEEE 802.3ae 10 Gigabit Ethernet
    • IEEE 802.3by 25G supporting all FEC modes
    • IEEE 802.3ad, 802.1AX Link Aggregation
    • IEEE 802.3az Energy Efficient Ethernet (supports only “Fast-Wake” mode)
    • IEEE 802.3ap based auto-negotiation and KR startup
    • IEEE 802.1Q, 802.1P VLAN tags and priority
    • IEEE 802.1Qaz (ETS)
    • IEEE 802.1Qbb (PFC)
    • IEEE 802.1Qbg
    • IEEE 1588v2
    • IEEE 1149.1 and IEEE 1149.6 JTAG
    • PCIe 3.0 and 4.0


  • Power Consumption:
    • Maximum: 15W


  • Operating Conditions:
    • Storage temperature: -40°C to 70°C (-40°F to 158°F)
    • Storage humidity: 90% non-condensing relative humidity at 35°C


  • Physical Dimensions:
    • PCB dimensions: 5.600 inches (L) x 2.712 inches (W)


Please note that this product is sold only as part of an integrated solution with Supermicro server systems.
