SUPERMICRO 4U active passive heatsink s2011, s.2066

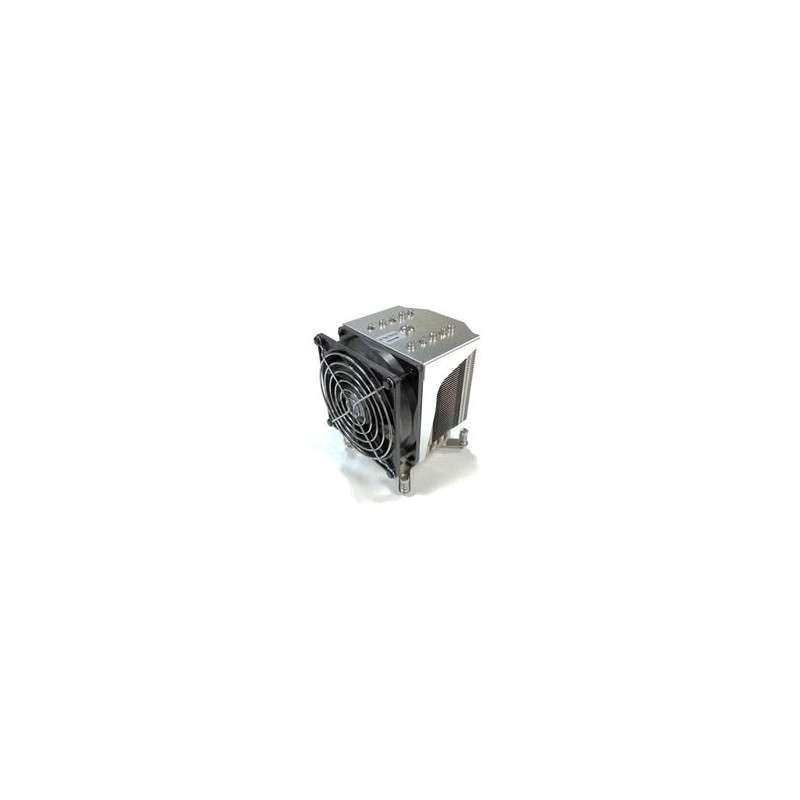

This CPU fan heat sink is designed for Supermicro X9 and X10 generations 4U UP and DP servers and workstations equipped with Intel Xeon E5-1600 or E5-2600 series processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance. Manufacturer Supermicro Server Form Factor 4U Cooling Type Active CPU Configuration Uni Processor, Dual Processor Supported CPU SKU Intel® Xeon® Processor E5-1600, E5-1600 v2, and E5-1600 v3 Series, Intel® Xeon® Processor E5-2600, E5-2600 v2, E5-2600 v3, and E5-2600 v4 Series Supported CPU Socket FCLGA2011 (Square and Narrow ILMs) Supported CPU TDP Up to 165 Watts Attached Cooling Fan Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 3,800 RPM Acoustic Noise: 38.0 dB(A) at Rated Speed Dimensions: 92L x 92H x 25W (mm) Position: Front Side MTBF/MTTF: 108,798 Hours Search Terms cpu fan Warranty 1 year warranty Product Environmental Compliance RoHS and REACH compliant, details available upon request
