Add-on Card

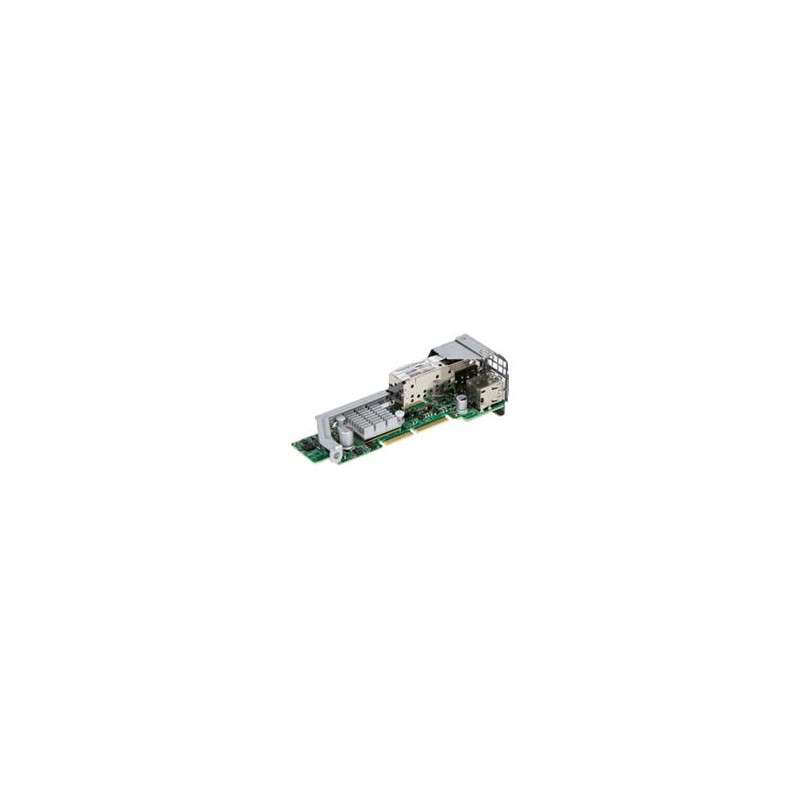

Compact and Powerful Dual-port 10 Gigabit Ethernet Adapter
Key Features
• Dual SFP+ Connectors
• MicroLP Form Factor
• PCI Express 2.0 (up to 5GT/s)
• Intel® QuickData Technology
• VMDq, Next-Generation VMDq, and
• PC-SIG SR-IOV for Virtualized Environments
• Load Balancing on Multiple CPUs
• iSCSI Remote Boot Support
• Fibre Channel over Ethernet (FCoE) Support
• Support for most Network Operating Systems (NOSs)
• Supports both DAC Twin Axial and LC Fiber-Optic Cables
• RoHS compliant 6/6
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Downloads
User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ Downlaod Site ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download Site ]
Compatibility Matrices
Servers
Supermicro MicroCloud and Twin Server Systems with microLP expansion slot
See MicroLP Compatibility Matrix
Cables & Transceivers
Networking Cables & Transceivers
Specification
• General
- Intel® 82599ES 10GbE controller
- Compact size microLP form factor
- Dual SFP+ and dual USB 2.0 ports
- PCI-E x8 2.0 (5GT/s)
- Load balancing on multiple CPUs
- iSCSI remote boot support
- Fibre Channel over Ethernet (FCoE) Support
- Intel® PROSet Utility for Windows® Device Manager
• I/O Features
- Intel® QuickData Technology: DMA engine that enhances data
acceleration and lowers CPU usage
- Direct Cache Access (DCA) to avoid cache misses
- MSI-X support to minimize the overhead of interrupts allowing
load-balancing between multiple cores/CPUs
- Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities
(IPv4, IPv6)
- Receive and Transmit Side Scaling for Windows environments
and Scalable I/O for Linux environments
• Virtualization Features
- Supports virtualization features such as VMDq, Next-gen.
VMDq (64 queues per port) and PC-SIG SR-IOV implementation
- IPv6 Offloading
- Advanced Packet Filtering
- VLAN support to allow creation of multiple VLAN segments
- VXLAN through Software
• Manageability Features
- Preboot eXecution Environment (PXE) support
- Simple Network Management Protocol (SNMP) and Remote
- Network Monitoring (RMON) statistics counters
- iSCSI remote boot
• OS Support
- Windows® 7, 8, Server 2003, Server 2008, Server 2008 R2,
Server 2012, Vista
- RedHat EL, SuSe SLES
- FreeBSD
- VMWare
• Cables Support
- SFP+ direct attached twin axial cables, up to 7 meters
- LC-LC fiber-optic cables (optional SFP+
transceiver is required)
• Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
• Physical Dimensions (L x W)
- Card PCB dimensions (without end brackets):
12.32cm (4.85in) x 3.90cm (1.54in)
• Power Consumption
- About 8W (typical)
