Controller

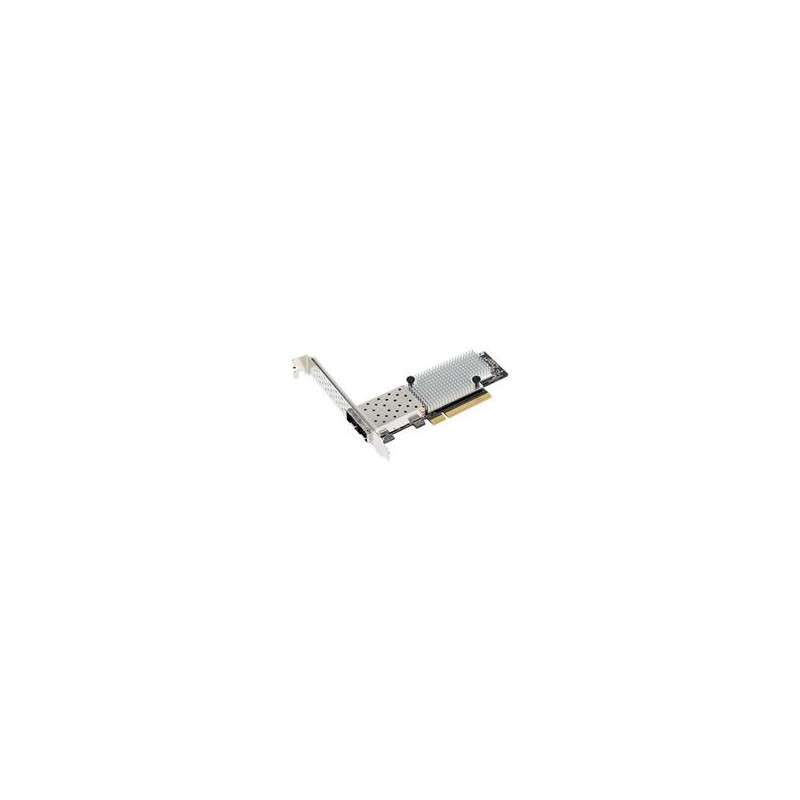

Intel® 82599ES 10 Gigabit Ethernet Controller
Speed
10 Gigabit/s Ethernet
I/O Ports
SFP+ ; Dual Port
Connector
LC Fiber Optic
Module Type
Supports SFP+ SR Optical Module, SFP+ LR Optical Module, Direct Attached Copper
Interface
PCI-E Gen2 x8
Form Factor
4.72”x 1.77”
(Lower Than Standard Low-profile)
Cable
Support Cable Type :
SMF up to 10km (LR)
MMF 62.5/50um up to 300m (SR)
Passive Twin-AX up to 10m (SFP+ Direct Attach)
Features
PXE Boot
iSCSI Boot
Package Content
1 x Full-height Bracket (Default)
1 x Low-profile Bracket with Screws
1 x Small Bracket(for Node) with Screws
1 x Support DVD (per carton)
Note
* All specifications are subject to change without prior notice.
*1 At 50? LAN card inlet temperature, the airflow through the heatsink requires 180 LFM or above.
*2 Support ASUS Server and Workstation Motherboard/System :
(1)Z10PE-D16 Series, Z10PH-D16, Z10PR-D16, Z10PA-D8 Series, Z10PA-U8 Series, Z10PE-D16 WS, Z10PE-D8 WS.
ESC8000 G3, ESC4000 G3S Series, ESC4000 G3 Series,RS700-E8 Series, RS720-E8-RS24-E, RS720Q-E8-RS12, RS520-E8 Series, RS500-E8 Series, RS400-E8 Series, TS500-E8-PS4, TS700-E8 Series.
(2)Z9PE-D16-10G/DUAL Series, Z9PE-D16 Series, Z9PH-D16 Series, Z9PR-D16, Z9PR-D12, Z9PA-D8 Series, Z9PA-U8 Series, Z9NR-D12, Z9NA-D6 Series, Z9NH-D12, Z9PE-D8 WS.
RS700-E7 Series, RS720-E7/RS24-EG, RS720-E7/RS12 Series, TS700-E7/RS8, RS720Q-E7/RS12 Series, TS700-X7/PS4, ESC2000 G2.
** Ensure to update BIOS to the latest version before using this card.
(3) P9D-E/4L, P9D-C/4L, P9D-MH Series, P9D-M, P9D-MV, P9D-V, P9D-X, P9D-I, P9D-IV, P9A-I Series.
** Ensure to update BIOS to the latest version before using this card.
