For 8 x 2,5 SATA(SAS) HDD/SSD
Simply rugged and high anti-vibration standard and worry-free of the heat and vibration!
Now an IPC industrial standard is also for soho and consummers.
For data backup, duplication, transportation, security, DVR, testing and consummers
Easy drives swap in / out or for tray transportation
Side sliding rails with vibration reducing springs
Metal keylock for security
SPECIFICATIONS:
Model Name

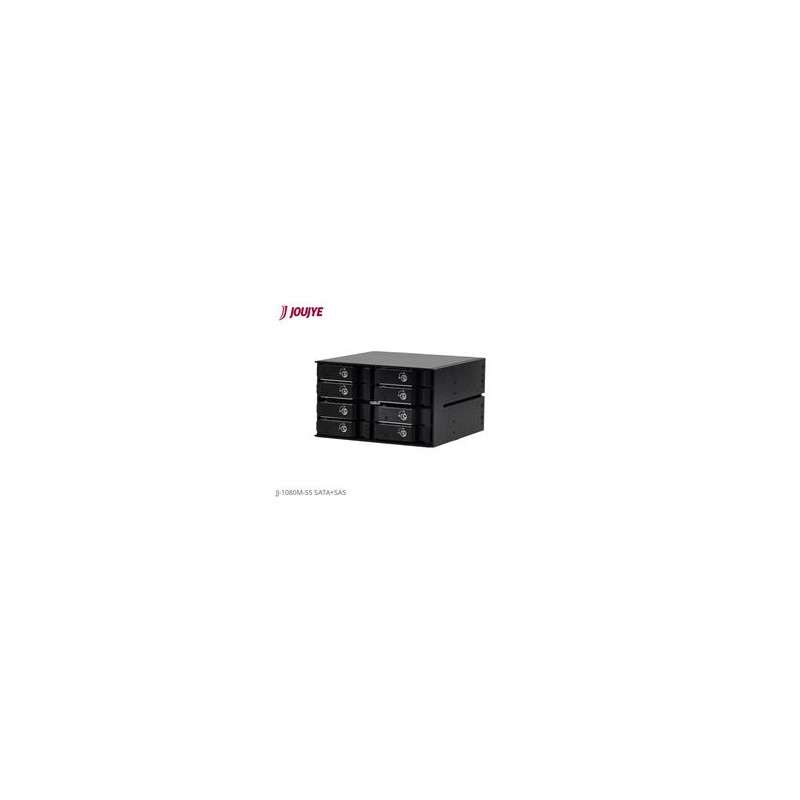

JJ-1080M-SS
Interface
SAS & SATA
Compatible with
SAS I & II or
SATA-I 1.5 Gbit/s, SATA-II 3.0 Gbit/s, SATA-III 6.0 Gbit/s
Bays
2 x 5.25" bay for 8 x 2.5" SAS & SATA HDD or SSDs
HDD size
2.5" SATA I, II, III , SAS I, II or SSD (height upto 14.5mm)
HDD connection
cableless HDD connection
Data connector
7pin data connector x 8
Power connector
SATA power x 2
Performance
SATA-I: upto 1.5Gbps
SATA-II: upto 3.0Gbps
SATA-III: upto 6.0Gbps
SAS-I: upto 3.0Gbps
SAS-II: upto 6.0Gbps
RAID support
Need an optional SAS or SATA Controller
Plug & play
Supports plug & play, hot swappable
Material
Aluminum body with metal trays
Colour
Black
Ventilation
7 x 7cm fan x 1 with stage speed adjustable
LED indication
Individual LED for the 8 drives (Blue for power & and purple blinking for accession. And with separate LED indication for fan failure and overheating.
Extra features
With HDD accessing On/Off Control LED Switch
With LED indication for fan failure and overheating
With extending LED functioning jumper for external connection
Cableless connection
Accessories
Screw bag
Options
-
Dimensions [mm]
160(L) x 146(W) x 86(H)mm
Weight
1.2KG
