Support up to 12Gbps SATA III / SAS III

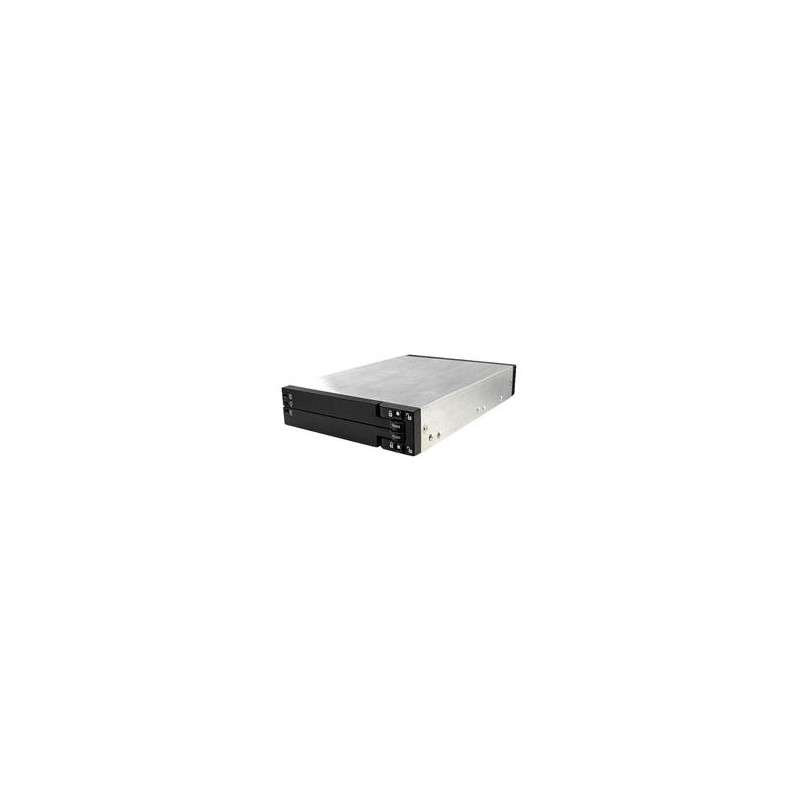

2 x 2.5" HDD/SSD* built on a convenient aluminum mobile rack
Enables 2.5" SATA/SAS drives to be fit on a 3.5" standard form factor drive bay (floppy size space) in any desktop, rackmount or IPC
Cableless HDD connection
Support up to 9.5mm height
For internal use only *SSD Solid State Drive (flash based drive)
Model Name JJ-20SS 12G
Interface 7pin SATA connector x 2
Compatible with SATA-I, SATA-II, SATA-III 3.2 & 3.3, SAS-I, SAS-II, SAS-III
Pin 15pin SATA power connector x 1
Performance upto 12 Gbps
HDD size 2 x 2.5" up to 9,5mm height
HDD installation screwless installation - easy slide HDD in & out
Supported drives thickness 9mm-9.5mm
Plug & play Supports plug & play
Hot swappable (if controller is with this feature)
Material Aluminum body, plastic front bezels
Colour Black front bezels, aluminum silver color body
Ventilation -
LED indication power on: green
Accessing: green blinking
Accessories 2 x 7pin SATA cable
Dimensions [mm] 146(L) X 101,5(W) X 25,4(H)
Weight 0.21KG
