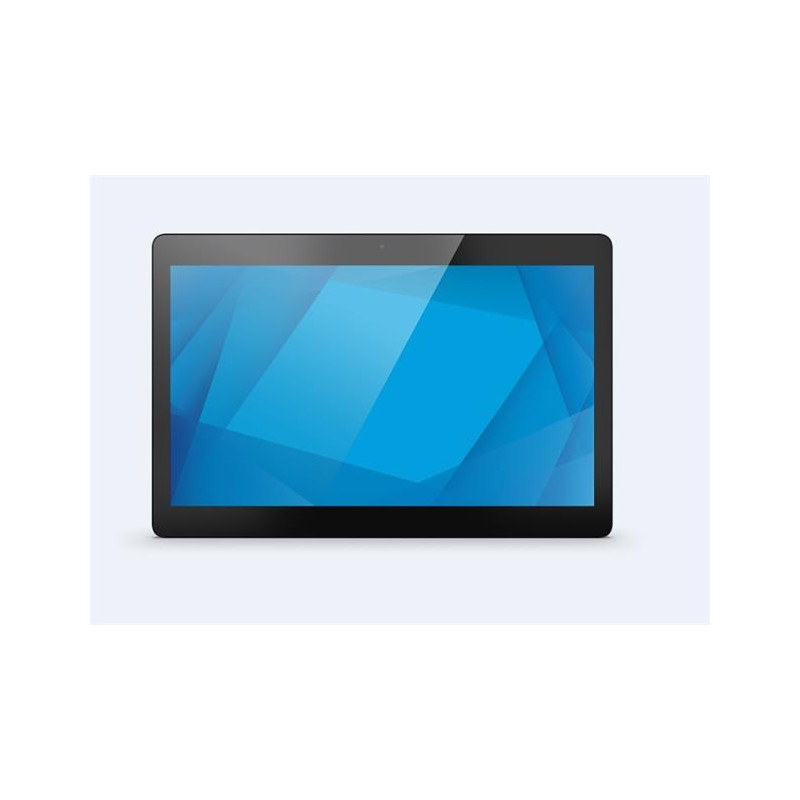

Elo I-Series 4 VALUE, Android 10 with GMS, 15.6-inch, 1920 x 1080 display, Rockchip 3399 Processor

Part Number(s)


Value Model:
Black - E391032

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Touch Thru

Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches

Processor


Value Model: Rockchip RK3399

Memory (RAM)

4GB

Storage

Value Model: 32GB

OS

Android 10 with Google Play Services and EloView content deployment and management

Diagonal Size

15.6'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area (mm)

13.55" x 7.62" / 344 mm x 194 mm

Resolution

1920 x 1080 @ 60Hz

Number of Colors

8-bit (16.7 million)

Brightness (typical)

Value Model:
LCD Panel: 250 nits
TouchPro PCAP: 215 nits

Response Time-total (typical)

25 msec

Contrast Ratio

700:1

Viewing Angle



Value Model:
Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

I/O Ports

1x USB 3.0 support (900mA)
Type C USB output
Micro SD slot
GPIO
Ethernet 1x LAN (Gigabit)
DC in

Peripheral Mounting

4x micro-USB 2.0 Elo Edge Connect ports

Support for 1.2A on one port and 500mA for the remaining three ports

Webcam


Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus

Wireless

802.11a/b/g/n/ac + Bluetooth 5.0

Audio Ports


Value Model: 1x built-in Analog Microphone

Speakers

Value Model: 2x 2W

Power Supply

AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

power adapter (included in accessory box)

Power Consumption (Typical)


Value Model:
On: 10.0W
Off: 0.4W
Sleep: 3.4W

Power Over Ethernet (PoE)

Supported via Elo PoE Device PN: E413396
Reference the I-Series 4.0 user guide for details.

Dimensions


Value Model: 15.3" x 9.8" x 0.9" / 389.7 mm x 249.7 mm x 22.3 mm

Shipping Box Dimensions


Value Model: 18.3" x 6.3" x 13.0" / 465 mm x 160 mm x 330 mm

Weight (Unpackaged)


Value Model: 3.5 lbs / 1.6 kg

Weight (Packaged)


Value Model: 7.2 lbs / 3.3 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 50°C / -4°F to 122°F

Humidity

Operating: 20% to 80%
Storage: 5% to 95%

Regulatory approvals and declarations

UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)

Supported Countries

Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey

Real-Time Clock

lithium coin cell battery

MTBF

50,000 hours demonstrated

Mounting Options

VESA 75mm and 100mm

Warranty

2-year

Extended Warranty Options

3 year warranty coverage - Elo P/N: E819394
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
2 year warranty coverage + AUR - Elo P/N: E819985
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Sealability

Touchscreen sealed to LCD

What's in the Box

I-Series 4
North American Power Cable
European Power Cable
1x Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (SE4720) – Elo P/N: E384627
2D Barcode Scanner (SE4107) – Elo P/N: E245047
POE Module Kit - Elo P/N: E413396
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
Temperature Sensor Pro – Elo P/N: E534879
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494
Expansion Module – Elo P/N: E809509
