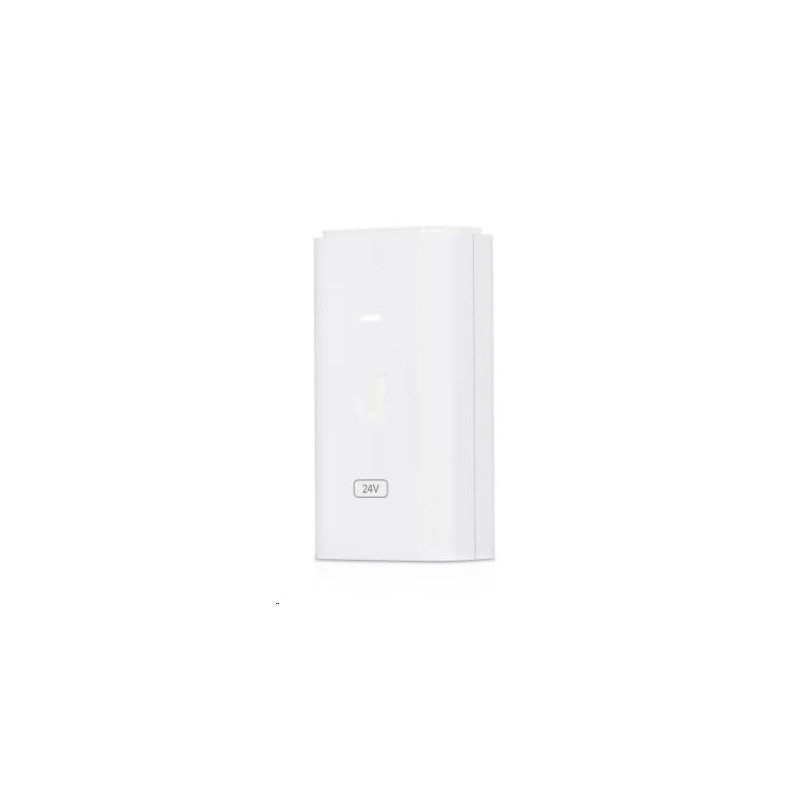

Ubiquiti PoE Injector, 24VDC, 12W

Technical Specifications Specifications Model POE-24-12W-WH Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 1.14") Weight 92 g (3.25 g) Output Voltage 24VDC @ 0.5A LAN Activity Indicator No Gigabit LAN Port Yes Remote Reset Capability Yes Reset Button Yes Rated Voltage 100-240VAC @ 50/60Hz Input Current 0.3A @ 120VAC, 0.2A @ 240VAC Inrush Current <30A Peak @ 120VAC, <60A Peak @ 230VAC Efficiency 75+% Output Ripple 1% Max. Switching Frequency 50 kHz Line Regulation ? 3% Load Regulation ? 5% 2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-) 4-Pair Powering – Operating Temperature 0 to 40° C (32 to 104° F) Storage Temperature -30 to 70°C (-22 to 158° F) Operating Humidity 35 to 95% Noncondensing AC Connector IEC-320 C6 Data IN / PoE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8/20 _s) Power Peak Pulse Current 36A (10/1000 _s) Data Shunt Capacitance <5 pF data Response Time <1 ns Certifications CE, FCC, IC, UL
