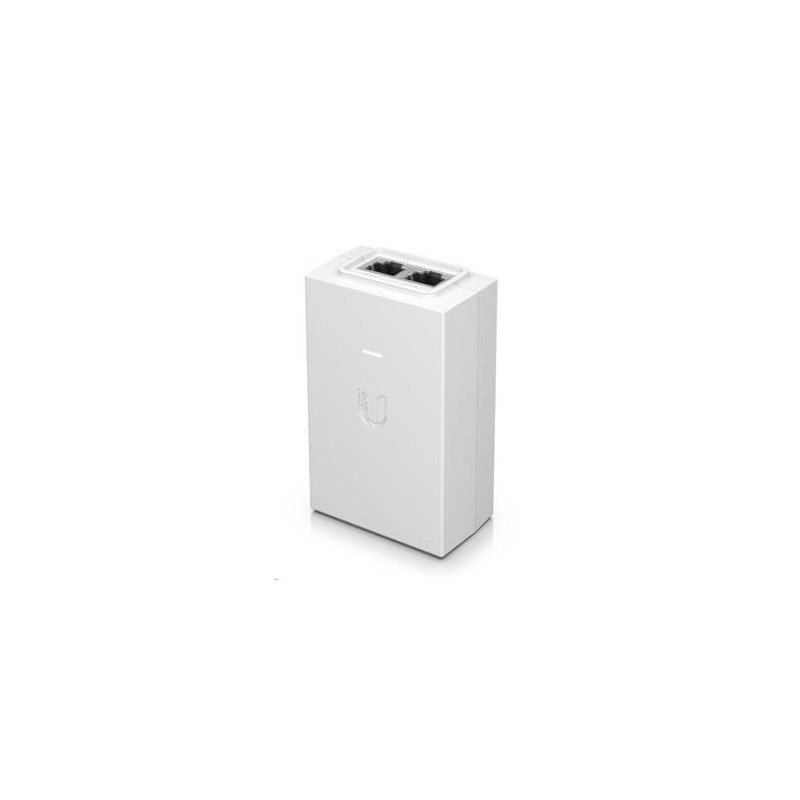

Ubiquiti PoE Injector, 24VDC, 30W, Gbit

Specifications Model POE-24-30W-G-WH Dimensions 94 _ 60 _ 33mm (3.70 x 2.36 x 1.30") Weight 156 g (5.5 oz) Output Voltage 25VDC @ 1.25A LAN Activity Indicator No Gigabit LAN Port Yes Remote Reset Capability No Reset Button No Rated Voltage 100-240VAC @ 50/60Hz Input Current 0.6A @ 120VAC, 0.4A @ 240VAC Inrush Current <60A Peak @ 120VAC, <120A Peak @ 230VAC Efficiency 83+% Output Ripple 1% Max. Switching Frequency 65kHz Line Regulation ? 3% Load Regulation ? 5% 2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-) 4-Pair Powering - Operating Temperature 0 to 40° C (32 to 104° F) Storage Temperature -30 to 70° C (-22 to 158° F) Operating Humidity 35 to 95% Noncondensing AC Connector IEC-320 C6 Data IN / PoE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8/20 _s) Power Peak Pulse Current 36A (10/1000 _s) Data Shunt Capacitance <5 pF data Response Time <1 ns Certifications CE, FCC, IC, UL
