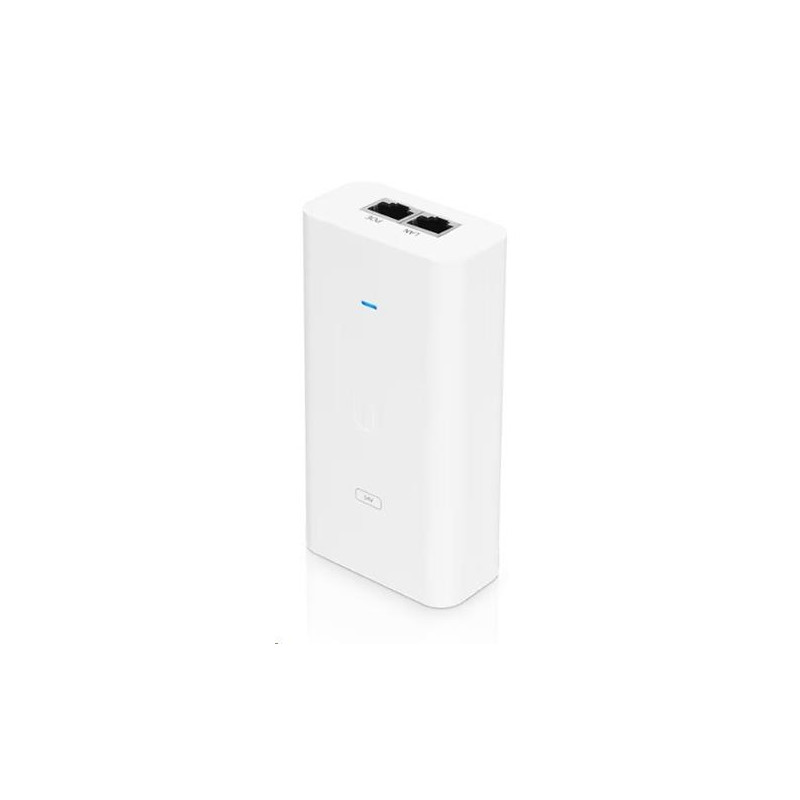

Ubiquiti EdgePoint PoE Injector, 54VDC, 80W

Technical Specification POE-54V-80W Dimensions 123 x 65 x 34 mm (4.8 x 2.6 x 1.3”) Weight 299 g (10.6 oz) Output voltage 54V DC @ 1.5A LAN activity indicator No Gigabit LAN port Yes Remote reset capability No Reset button No Rated voltage 100-240V AC @ 50/60Hz Input current 0.8A @ 120V AC, 0.4A @ 240V AC Inrush current <80A Peak @ 120V AC, <120A Peak @ 230V AC Efficiency 87+% Output ripple 1% Max. Switching frequency 100 kHz Max. Line regulation ? 3% Load regulation ? 5% 2-pair powering – 4-pair powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) AC connector IEC-320 C6 Data IN / PoE RJ45 shielded socket Surge protection Difference and common mode Clamping protection 11V data, 60V power Max. surge discharge 1500A (8/20 µs) power Peak pulse current 36A (10/1000 µs) data Shunt capacitance <5 pF data Response time <1 ns Storage temperature -30 to 70°C (-22 to 158° F) Ambient operating temperature 0 to 40° C (32 to 104° F) Ambient operating humidity 35 to 95% noncondensing Certifications CE, FCC, IC, UL
