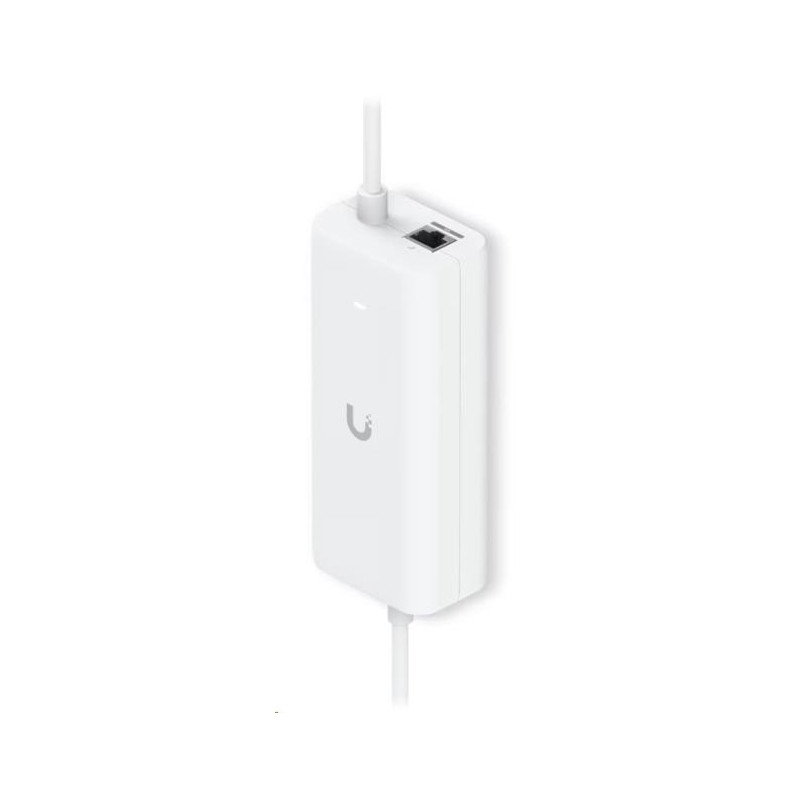

Ubiquiti PoE Integrated AC Adapter

Dimensions 146 x 62 x 42 mm (5.7 x 2.4 x 1.7") Weight 358 g (12.6 oz) Cable length Type-C/Ethernet: 150 cm (4.9 ft) Power cord: 180 cm (5.9 ft) Output voltage Type-C: 5V@ 5A PoE+: 48V@ 0.65A LAN activity indicator No Gigabit LAN port Up to 10 GbE Remote reset capability No Reset button No Rated voltage 100—240V AC @ 50/60Hz Input current 1.5A max. Inrush current 120A Efficiency 82% Output ripple 1% max. Switching frequency 65 kHz Line regulation ? 5% Load regulation ? 5% 2-pair powering No 4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) Data In / PoE RJ45 shielded socket Surge protection Difference and common mode Clamping protection 11V data, 60V power Max. surge discharge 1500A (8/20 µs) power Peak pulse current 36A (10/1000 µs) data Shunt capacitance <5 pF data Response time <1 ns Ambient operating temperature 0 to 40° C (32 to 104° F) Storage temperature -30 to 70°C (-22 to 158° F) Ambient operating humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL, UKCA, CCC, KC, RoHS
