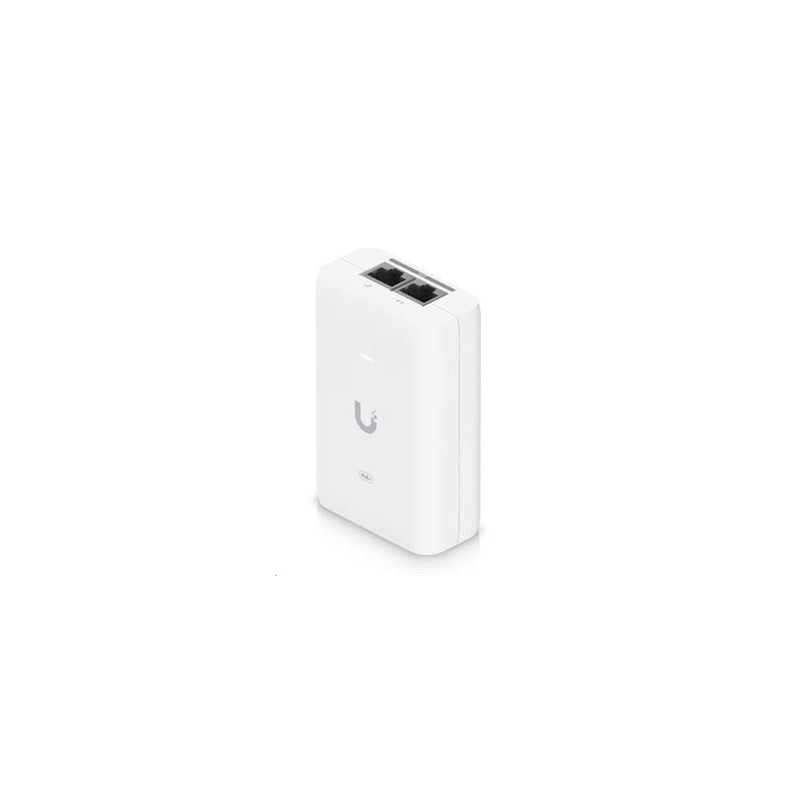

Ubiquiti 2.5G PoE+ Adapter (30W)

Technical Specification Dimensions 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") Weight 156 g (5.5 oz) Output voltage 48V DC @ 0.65A LAN activity indicator No Gigabit LAN port Yes, up to 2.5 GbE Remote reset capability No Reset button No Rated voltage 100—240V AC @ 50/60Hz Input current 0.75A max. Inrush current <150A peak @ 230V AC Efficiency >87% Output ripple 1% max. Switching frequency 65 kHz max. Line regulation ? 1% Load regulation ? 3% 2-pair powering Pins 4, 5 (+) and 7, 8 (-) 4-pair powering No Data In / PoE RJ45 shielded socket Surge protection Difference and common mode Clamping protection 11V data, 60V power Max. surge discharge 1500A (8/20 µs) power Peak pulse current 36A (10/1000 µs) data Shunt capacitance <5 pF data Response time <1 ns Ambient operating temperature 0 to 40° C (32 to 104° F) Storage temperature -30 to 70°C (-22 to 158° F) Ambient operating humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
